63-6983-13 EPCOS N87 Ferrite Core, 4300nH, 40.5 x 28 x 19.9mm, For Use With Power Transformers B65883A0000R087
Product Description
Product Model: 63-6983-13Product Brand: EPCOS Features […]
Contact Us
Product Details
Product Model: 63-6983-13
Product Brand: EPCOS
Features

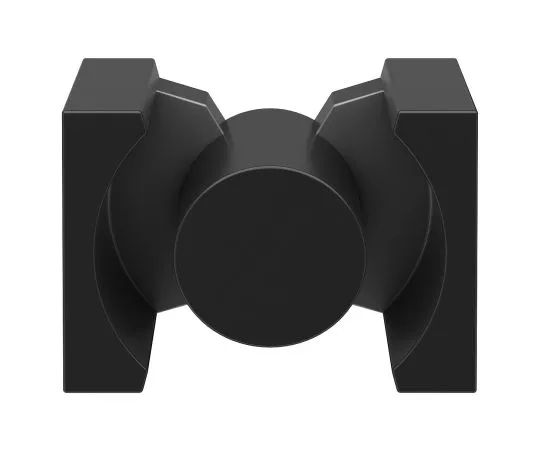

- EPCOS PQ Ferrite Core
- The EPCOS PQ Ferrite Core has optimized circular legs and a larger outer surface area than conventional cores. The circular legs of these ferrite cores shorten the winding length, and the large surface area increases the heat dissipation area and reduces thermal resistance. This shape also provides excellent shielding for windings. IEC62317-13 compliance
Spec
- Quantity:1bag(2pieces)
- Accessory Type : Ferrite Core
- For Use With : Power Transformers
- Dimensions : 40.5 x 28 x 19.9mm
- AL Rating : 4300nH
- Material : N87
- Depth : 19.9mm
- Length : 40.5mm
- Width : 28mm
- Standards Met : IEC 62317-13
- CODE No.:125-3598
