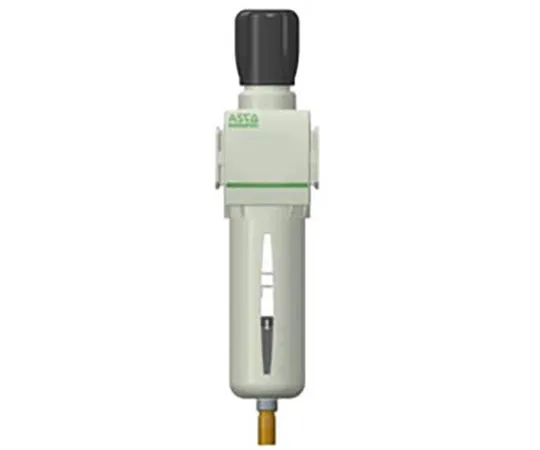

63-6982-62 Asco 652 Filter Regulator 25μm G 3/8, 10 bar G652APJP3GA00HN
Product Description
Product Model: 63-6982-62Product Brand: Asco Features 6 […]
Contact Us
Product Details
Product Model: 63-6982-62
Product Brand: Asco
Features
- 652 Series Filter Regulator
- ASCO 652 series filter regulator with semi-automatic drain function. This equipment has a micron rating of 25 μm and comes with a polycarbonate bowl with a bowl guard. Equipment is shipped installed and ready for installation. The 652 Series is a modular air preparation system that is easy to install and configure and is suitable for a variety of compressed air applications.
- Features and benefits: High flow rate with wide adjustable output range
- Low profile gauge bar/PSI
- Optional ext***ed temperature range: -40 → +80 °C
- Sintered polyethylene elements and centrifuge
- Screw ports compatible with single or modular mounting
- Breakthrough 2 position plastic drain with manual and semi-automatic functions
- Polycarbonate bowl
- Air purity class compliant with ISO 8573-1: 2010
Spec
- Quantity:1piece
- Manufacturer Series : 652
- Port Connection : G 3/8
- Drain Type : Manual, Semi Automatic
- Filtration Size : 25µm
- Port Connection Thread Size : 3/8 in
- Maximum Operating Pressure : 10 bar
- Maximum Ambient Operating Temperature : +50°C
- Minimum Process Operating Temperature : -20°C
- Minimum Operating Pressure : 0.5bar
- Minimum Ambient Operating Temperature : -20°C
- CODE No.:125-3546
