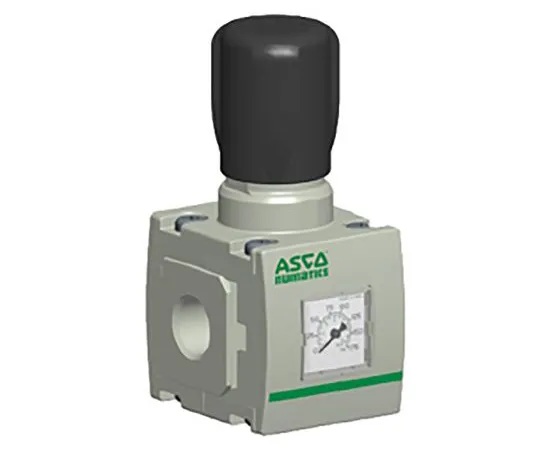

63-6982-61 Asco Pneumatic Regulator 245 SCFM, 7000 L/min G 1/2, 0.5 → 10bar G652AR004GA00H0
Product Description
Product Model: 63-6982-61Product Brand: Asco Features 6 […]
Contact Us
Product Details
Product Model: 63-6982-61
Product Brand: Asco
Features
- 651/652 Series Regulator
- This is a high flow regulator for ASCO's 651/652 series air preparation equipment. This pneumatic regulator has threaded ports and can be installed alone or on other 651/652 series equipment. The 651/652 series is a modular air preparation system that is easy to install and configure and is suitable for a variety of compressed air applications.
- Features and benefits: High flow rate with a wide adjustable output range
- Decompression, non-decompression, and internal flow check options
- Low profile gauge bar/PSI
- Optional ext***ed temperature range: -40 → +80 °C
- Screw ports compatible with single or modular mounting
Spec
- Quantity:1piece
- Port Connection : G 1/2
- Minimum Outlet Pressure : 0.5bar
- Maximum Outlet Pressure : 10bar
- Maximum Input Pressure : 16bar
- Port Connection Thread Size : 1/2 in
- Typical Flow Rate : 245 SCFM, 7000 L/min
- Integral Check Valve : Without Check Valve
- Port Connection Thread Standard : G
- Minimum Operating Temperature : -20°C
- Maximum Operating Temperature : +50°C
- Overall Width : 55mm
- CODE No.:125-3545
