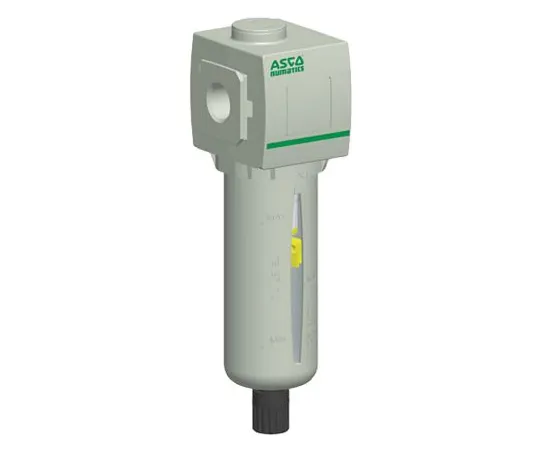

63-6982-59 Asco 25μ G 1/2 Pneumatic Filter, Automatic, Manual, Semi Automatic, Maximum of 16bar G652ABJP4JA000N
Electronic/Electrical Parts and Controll Equipments

63-6982-59 Asco 25μ G 1/2 Pneumatic Filter, Automatic, Manual, Semi Automatic, Maximum of 16bar G652ABJP4JA000N

model: 63-6982-59
brand: Asco

Product Description

Product Model: 63-6982-59Product Brand: Asco Features 6 […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-6982-59
Product Brand: Asco

Features

  • 651/652 Series Filter
  • ASCO 651/652 series pneumatic filter with semi-automatic drain function. The unit is equipped with a 25 μm sintered polyethylene element and a centrifuge to remove particulates and sewage from the trachea. It has a polycarbonate bowl with a bowl guard and a site gauge to meet industrial requirements. The 651/652 series is a modular air preparation system that is easy to install and configure and is suitable for a variety of compressed air applications.
  • Features and benefits: Wide choice of filtering functions to remove particulates and water droplets from compressed air or inert gases
  • Sintered polyethylene elements and centrifugal separators
  • Optional ext***ed temperature range: -40 → +80 °C
  • Breakthrough two-position plastic drain with manual and semi-automatic functions
  • Polycarbonate bowl
  • Screw ports for single or modular mounting
  • Air purity class in accordance with ISO 8573-1 2010

Spec

  • Quantity:1piece
  • Filtration Size : 25µ
  • Drain Type : Automatic, Manual, Semi Automatic
  • Port Connection : G 1/2
  • Typical Flow Rate : 129.5 SCFM, 3700 L/min
  • Maximum Operating Pressure : 16 bar
  • Maximum Operating Temperature : +50°C
  • Port Connection Thread Standard : G
  • Minimum Operating Temperature : -20°C
  • Port Connection Thread Size : 1/2 in
  • Bowl Material : Polycarbonate
  • CODE No.:125-3543
