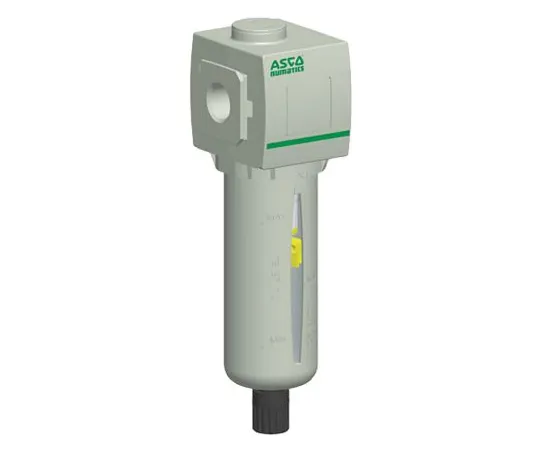

63-6982-58 Asco 25μ G 3/8 Pneumatic Filter, Automatic, Manual, Semi Automatic, Maximum of 16bar G652ABJP3JA000N
Product Description
Product Model: 63-6982-58Product Brand: Asco Features 6 […]
Contact Us
Product Details
Product Model: 63-6982-58
Product Brand: Asco
Features
- 651/652 Series Filter
- ASCO 651/652 series pneumatic filter with semi-automatic drain function. The unit is equipped with a 25 μm sintered polyethylene element and a centrifuge to remove particulates and sewage from the trachea. It has a polycarbonate bowl with a bowl guard and a site gauge to meet industrial requirements. The 651/652 series is a modular air preparation system that is easy to install and configure and is suitable for a variety of compressed air applications.
- Features and benefits: Wide choice of filtering functions to remove particulates and water droplets from compressed air or inert gases
- Sintered polyethylene elements and centrifugal separators
- Optional ext***ed temperature range: -40 → +80 °C
- Breakthrough two-position plastic drain with manual and semi-automatic functions
- Polycarbonate bowl
- Screw ports for single or modular mounting
- Air purity class in accordance with ISO 8573-1 2010
Spec
- Quantity:1piece
- Filtration Size : 25µ
- Drain Type : Automatic, Manual, Semi Automatic
- Port Connection : G 3/8
- Typical Flow Rate : 118.7 SCFM, 3390 L/min
- Maximum Operating Pressure : 16 bar
- Maximum Operating Temperature : +50°C
- Port Connection Thread Standard : G
- Minimum Operating Temperature : -20°C
- Port Connection Thread Size : 3/8 in
- Filter Type : Air Filter
- CODE No.:125-3542
