Features

• The Green Premium product label, an eco-mark of Schneider Electric, indicates that the product meets international environmental standards, such as RoHS-2 in accordance with EU Directive e2002/95, R units in accordance with EU Regulation 1907/2006 and IEC62635. End-of-life instructions comply with the latest recycling regulations and 70% of product components are recyclable.

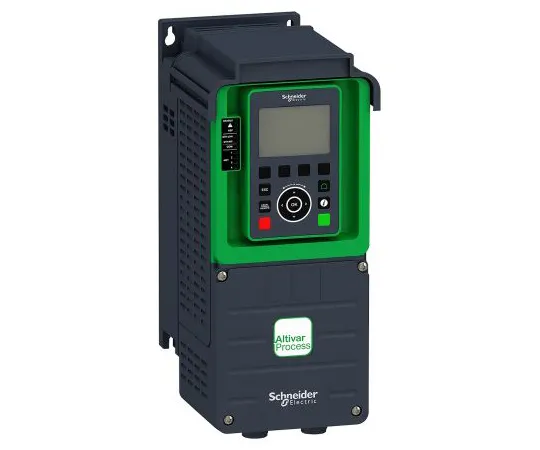

• Altivar ATV630 VFD Series
• Altivar Process Variable Speed Drives deliver business optimization, real-time intelligence and the efficiency you need. Altivar Process drives provide a wide range of flexibility in handling water, wastewater, mining, minerals, metals, oil, gas, food and beverages. This series of variable frequency drives is the best solution for improving machine efficiency in a variety of applications. The Altivar ATV630 VFD (Variable Frequency Drive) series is IP21 rated and wall mountable. With three levels of synchronous and asynchronous motors, you can make the best choice for many jobs.
• Features & Benefits: Wall-mounted drives, built-in cabinets, and floor-mounted solutions with protection grades IP21, IP23, IP54, and IP55 are available to meet customer requirements.　Built-in pump monitoring allows you to quickly respond with optimal process monitoring when the efficiency of the pump decreases.　Notify important operation points without additional sensors.　Provides process integration with pressure, flow, and level control, including flow loss compensation.　The innovative Stop and Go feature saves up to 60% of energy in standby mode.　It also has power data recording and a graphic display.　Schneider's Altivar ATV630 features a built-in Ethernet network-based Web server interface that enables you to monitor processes using everyday work tools.　Get local and remote access to your Energy Consumption and Customization Dashboard so you can see your energy consumption anywhere, anytime, on your PC, tablet or smartphone.　The series is very easy to *** and easily integrates with standardized FDT/DTM and ODVA technologies, supported by predefined Unity Pro libraries.　You can easily access your PC, tablet or smartphone, and secure your connection through Cyber Secure Ethernet.　We *** a sophisticated service concept with a modular design that enables simple spare parts logistics.　Dynamic maintenance schedules optimize maintenance costs and consolidate monitoring of individual components.　Replacing the power supply and fan is very simple.　Quick support with dynamic QR codes and customer care apps.
• What is the "Stop and Go" function of the Altivar Process drive?
• This special function can significantly reduce the energy consumption of the motor in standby mode and the power consumption during drive operation. This feature can save up to 60% on energy consumption. When the Stop and Go function is active, the power section (Rectifier, DC bus), fans, and graphic keyboard backlights are turned off. This power saving mode is automatically turned on when the machine is not in *** or is operating. This is visible in the communication network and can be adjusted using the parameters.
• Other accessories of this inverter drive
• This inverter drive also comes with a graphic display terminal. This can be attached to the front of the inverter. You can also *** remote mount accessories to connect to and install enclosure doors. You can connect a display terminal to a PC via a Mini USB connection or a USB connection to exchange files. You can also connect to multiple drives in multi-drop mode. For more information about this feature, see Datasheet.
