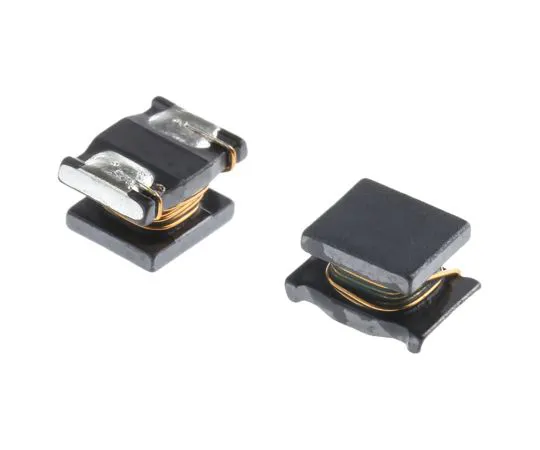

63-6979-87 Murata LQH43CN Series Type 1812 (4532M) Wire-wound SMD Inductor 10 μH ±10% Wire-Wound 650mA Idc LQH43CN100K03L
Product Description
Product Model: 63-6979-87Product Brand: Murata Features […]
Contact Us
Product Details
Product Model: 63-6979-87
Product Brand: Murata
Features
- Murata 1812 LQH43CN Series Winding Inductor Coil Inductor with Ferrite Core. High quality and low DC resistance. It has low voltage drop and excellent high temperature stability.
- Application: Filtration Inductor for Switch Mode Power Supply
Spec
- Quantity:1set(500pieces)
- Inductance : 10 μH
- Maximum DC Current : 650mA
- Package/Case : 1812 (4532M)
- Length : 4.5mm
- Depth : 3.2mm
- Height : 2.6mm
- Dimensions : 4.5 x 3.2 x 2.6mm
- Tolerance : ±10%
- Maximum DC Resistance : 240mΩ
- Series : LQH43CN
- Maximum Self Resonant Frequency : 23MHz
- Minimum Operating Temperature : -40°C
- CODE No.:125-3181
