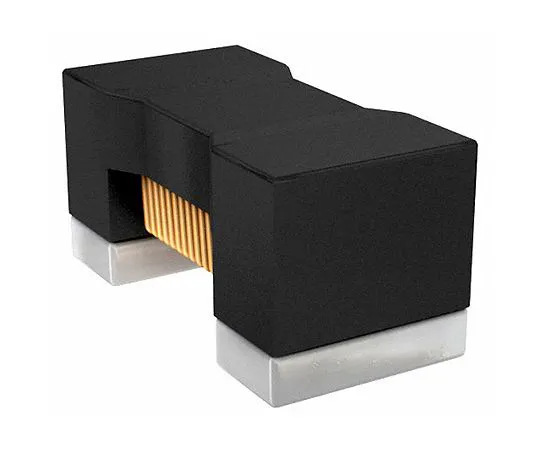

63-6979-81 Murata LQW18A Series Type 0603 (1608M) Wire-wound SMD Inductor 6.2 nH ±0.5nH Wire-Wound 750mA Idc Q:35 LQW18AN6N2D00D
Product Description
Product Model: 63-6979-81Product Brand: Murata Features […]
Contact Us
Product Details
Product Model: 63-6979-81
Product Brand: Murata
Features
- Murata 0603 LQW18AN Series Winding Inductor
- A high-quality coil inductor designed for VHF/UHF applications. The model "10 D" at the *** of the inductance value with a low high resonant frequency tolerance has a lower DC resistance value. Applications: High-frequency circuits for Bluetooth, GSM, W-LAN and other wireless telecommunications devices
Spec
- Quantity:1set(4000pieces)
- Inductance : 6.2 nH
- Maximum DC Current : 750mA
- Package/Case : 0603 (1608M)
- Length : 1.6mm
- Depth : 0.8mm
- Height : 0.8mm
- Dimensions : 1.6 x 0.8 x 0.8mm
- Tolerance : ±0.5nH
- Maximum DC Resistance : 82mΩ
- Series : LQW18A
- Maximum Self Resonant Frequency : 6GHz
- Minimum Operating Temperature : -55°C
- CODE No.:125-3175
