Electronic/Electrical Parts and Controll Equipments
63-6979-40 Murata LQH32MN Series Type 1210 (3225M) Wire-wound SMD Inductor 10 μH ±10% Wire-Wound 190mA Idc Q:35 LQH32MN100K23L
Product Description
Product Model: 63-6979-40Product Brand: Murata Features […]
Contact Us
Product Details
Product Model: 63-6979-40
Product Brand: Murata
Features
- Electronic circuits such as video, communication and audio equipment
- Chip inductor (coil), winding type for general circuits LQH32
- Wide inductance range of 0~560 μH with a size of 3.2 × 2.5 mm Cover for all signal circuits up to 100 MHz with high Q Low DC resistance and large current flow
Spec
- Quantity:1set(2000pieces)
- Inductance : 10 μH
- Maximum DC Current : 190mA
- Package/Case : 1210 (3225M)
- Length : 3.2mm
- Depth : 2.5mm
- Height : 2mm
- Dimensions : 3.2 x 2.5 x 2mm
- Tolerance : ±10%
- Maximum DC Resistance : 1.8Ω
- Series : LQH32MN
- Maximum Self Resonant Frequency : 20MHz
- Minimum Quality Factor : 35
- CODE No.:125-3125
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments

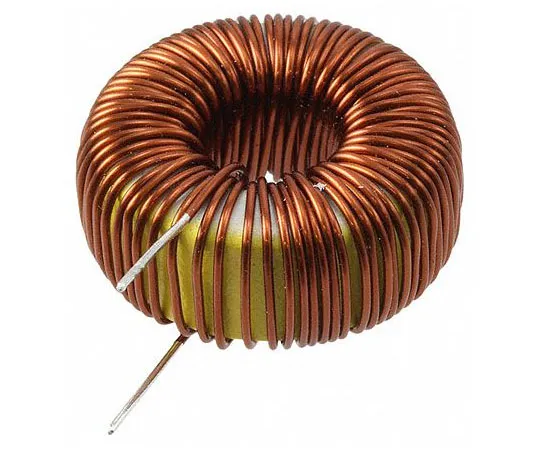

63-8345-09 RS Pro 33 μH ±15% Power Inductor, 3A Idc, 38mΩ Rdc 173-0030
