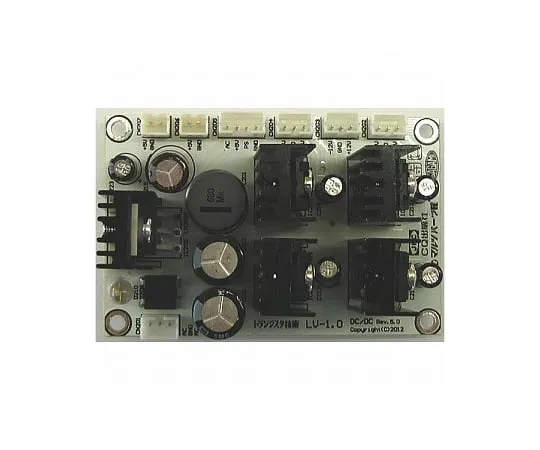

63-3125-24 DC/DC Power Substrate LV1-DCDCM
Product Description
Product Model: 63-3125-24Product Brand: Linkman Feature […]
Contact Us
Product Details
Product Model: 63-3125-24
Product Brand: Linkman
Features
- Size
- 72x47mm
- Height including mounting parts
- 26.9 mm (not including protrusions)
- Main device
- Power supply regulator LM2595T-5.0 manufactured by National Semiconductor
- 3 terminal regulators NJM7812 and NJM7912 manufactured by Nippon Wireless
- Product features
- 5 regulator ICs that supply DC power to substrates other than power amplifiers
- Generation of low noise ±12 V and +5 V
- Contents
- PS2 power supply board
- Handling instructions
- Circuit diagram
- Overall wiring diagram
Spec
- Input: 12 VAC
- Power: 3 x 5 VDC, 3 x 12 VDC
