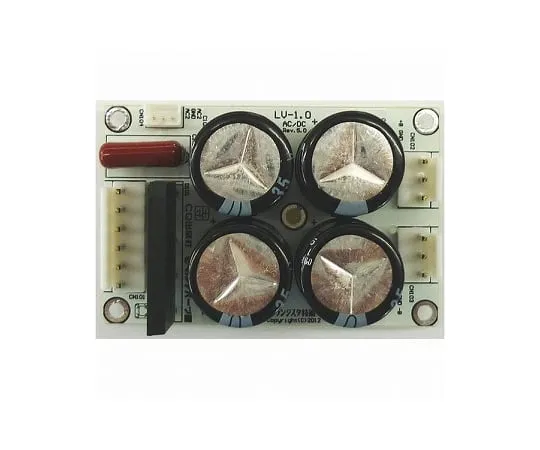

63-3125-23 AC/DC Power Substrate LV1-ACDCM
Product Description
Product Model: 63-3125-23Product Brand: Linkman Feature […]
Contact Us
Product Details
Product Model: 63-3125-23
Product Brand: Linkman
Features
- Size
- 72x47mm
- Height including mounting parts
- 28.8 mm (not including protrusions)
- Main device
- Shindengen rectifier bridge/diode D6SB60 L
- Electrolytic capacitor 35 V3300μF
- Product features
- Shindengen D6SB60 L (maximum rating 600 V6A) Low noise rectifier bridge/diode
- Power amp drive power supply
- Through circuit mounted from dedicated transformer to DCDC board
- Contents
- PS1 power supply board
- Instructions
- Circuit diagram
- Overall wiring diagram
Spec
- Assumed input voltage: AC 18 V 1 system, AC 12 V 1 system
- Number of output ch after rectification: 2 ch
