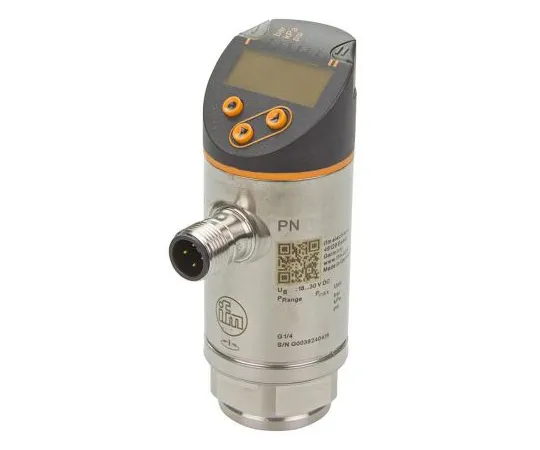

63-6974-24 ifm electronic Relative for Fluid Pressure Sensor, IO-Link, 10bar Max Pressure Reading , 18 → 30 V dc, G1/4, PN2094
model:
63-6974-24
brand:
ifm electronic
Product Description
Product Model: 63-6974-24Product Brand: ifm electronic […]
Contact Us
Product Details
Product Model: 63-6974-24
Product Brand: ifm electronic
Features
- ifm electronic PN2xxx series pressure sensor
- The ifm electronic PN2xxx series pressure sensor has a flexible design that allows the sensor to rotate in any direction after installation. Dual switch NC/NO output or single switch output/scalable analog output can be selected. This PN pressure sensor can continuously display and evaluate system pressure on a large high-intensity four-digit alphanumeric display. This display switches from red to alternating red-green to highlight the switching state.
- Features and benefits: IO-Link communication Individual set and reset point Easy-to-read LEDs visualize switching state Signal attenuation, output delay On/off time High overload protection High stability ceramic measuring element allows overpressure Low offset or 0 drift (Deterioration, overpressure, and temperature are factors) IP67
Spec
- Quantity:1piece
- Pressure Reading Type : Relative
- Minimum Pressure Reading : -1bar
- Maximum Pressure Reading : 10bar
- Accuracy : <±0.4 %
- Output Type : Analogue + PNP-NO/NC Programmable
- Media Measured : Fluid
- Process Connection : G1/4
- Analogue Output : 0 → 10 V, 4 → 20 mA
- Maximum Current : 250 mA
- Supply Voltage : 18 → 30 V dc
- Interface : IO-Link
- Housing Material : PBT GF20, PBT+PC GF30, PC, Stainless Steel
- IP Rating : IP65, IP67
- Minimum Operating Temperature : -25°C
- CODE No.:125-1283
