63-6974-09 ifm electronic Relative for Fluid Pressure Sensor, IO-Link, 250bar Max Pressure Reading , 18 → 30 V dc, G1/4, PN7071
model:
63-6974-09
brand:
ifm electronic
Product Description
Product Model: 63-6974-09Product Brand: ifm electronic […]
Contact Us
Product Details
Product Model: 63-6974-09
Product Brand: ifm electronic
Features

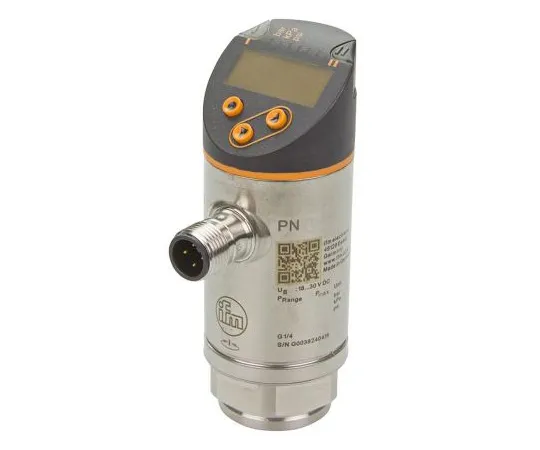

- ifm electronic PN7xxx series pressure sensor
- The ifm electronic PN7xxx series pressure sensor has a flexible design that allows the sensor to rotate in any direction after installation. Hysteresis is fully controlled by the dual switch NC/NO output (Measure equipment to frequently replace high/low pair mechanical switches). This PN pressure sensor can continuously display and evaluate system pressure on a large high-intensity four-digit alphanumeric display. This display switches from red to alternating red-green to highlight the switching state.
- Features and benefits: IO-Link communication Individual set and reset point Easy-to-read LEDs visualize switching state Signal attenuation, output delay On/off time High overload protection High stability ceramic measuring element allows overpressure Low offset or 0 drift (Deterioration, overpressure, and temperature are factors) IP67
Spec
- Quantity:1piece
- Pressure Reading Type : Relative
- Minimum Pressure Reading : 0bar
- Maximum Pressure Reading : 250bar
- Accuracy : <±0.5 %
- Output Type : 2x PNP/NPN-NO/NC
- Media Measured : Fluid
- Process Connection : G1/4
- Electrical Connection : M12 Connector
- Response Time : <3 (Minimum Switching Output) ms
- Maximum Current : 150 mA @ +60 °C, 200 mA @ +60 °C, 250 mA @ +40 °C
- Supply Voltage : 18 → 30 V dc
- Interface : IO-Link
- Housing Material : PBT GF20, PBT+PC GF30, PC, Stainless Steel
- IP Rating : IP65, IP67
- Maximum Operating Temperature : +80°C
- CODE No.:125-1268
