Electronic/Electrical Parts and Controll Equipments

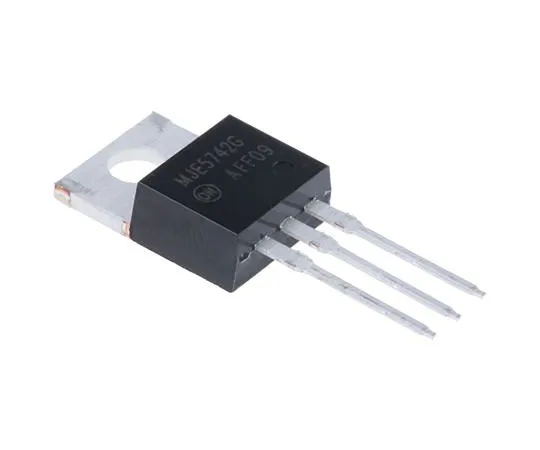

63-6968-58 ON Semi MJE5742G NPN Darlington Pair, 8 A 400 V HFE:50, 3-Pin TO-220 MJE5742G
model:
63-6968-58
brand:
ON Semiconductor
Product Description
Product Model: 63-6968-58Product Brand: ON Semiconducto […]
Contact Us
Product Details
Product Model: 63-6968-58
Product Brand: ON Semiconductor
Features
- Manufacturer part numbers with S or NSV at the beginning are automotive products that conform to the AEC-Q101 standard.
- NPN Darlington transistor, ON Semiconductor
Spec
- Quantity:1set(50pieces)
- Transistor Type : NPN
- Maximum Continuous Collector Current : 8 A
- Maximum Collector Emitter Voltage : 400 V
- Maximum Emitter Base Voltage : 8 V
- Package Type : TO-220
- Mounting Type : Through Hole
- Pin Count : 3
- Transistor Configuration : Single
- Number of Elements per Chip : 1
- Minimum DC Current Gain : 50
- Maximum Base Emitter Saturation Voltage : 3.5 V
- Maximum Collector Emitter Saturation Voltage : 3 V
- Maximum Collector Cut-off Current : 5mA
- Height : 15.75mm
- CODE No.:125-0074
