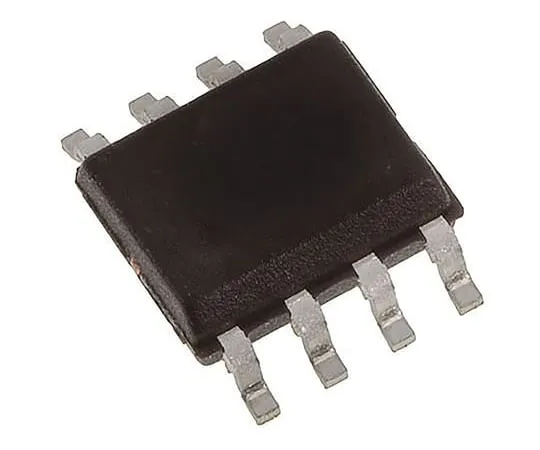

63-6968-26 MC33272ADR2G ON Semiconductor, Op Amp, 24MHz 100 kHz, 3 → 36 V, 8-Pin SOIC MC33272ADR2G
model:
63-6968-26
brand:
ON Semiconductor
Product Description
Product Model: 63-6968-26Product Brand: ON Semiconducto […]
Contact Us
Product Details
Product Model: 63-6968-26
Product Brand: ON Semiconductor
Features
- MC33272A/74 A, NCV33272A/74 A, high slew rate, low input offset voltage, op amp, ON Semiconductor
- ON Semiconductor's MC33272A/74 A and NCV33272A/74 A dual and quad op amps *** bipolar inputs and patented Zip-R-Trim elements to reduce input offset voltage. Features low input voltage and high gain bandwidth product. Dual doublet frequency compensation is ***d to maintain low input noise characteristics while increasing slew rate. All NPN output stages feature no dead-band crossover distortion, a large output voltage swing, and excellent phase/gain margins. In addition, the low open-loop high frequency output impedance provides symmetrical AC frequency performance between the source and sink.
- Input offset voltage trimmed to 100 μV (standard) Low input bias current: 300 nA Low input offset current: 3.0 nA High input resistance: 16 M Low noise: 18 nV/√Hz @ 1 kHz High gain bandwidth product 24 MHz @ 100 kHz High slew rate: 10 V/μs
Spec
- Quantity:1set(2500pieces)
- Mounting Type : Surface Mount
- Package Type : SOIC
- Power Supply Type : Dual, Single
- Number of Channels per Chip : 2
- Pin Count : 8
- Typical Single Supply Voltage : 3 → 36 V
- Typical Gain Bandwidth Product : 24MHz
- Typical Dual Supply Voltage : ±1.5 → ±18V
- Typical Slew Rate : 10V/µs
- Maximum Operating Frequency : 100 kHz
- Minimum Operating Temperature : -40 °C
- Typical Input Voltage Noise Density : 18nV/√Hz
- CODE No.:125-0037
