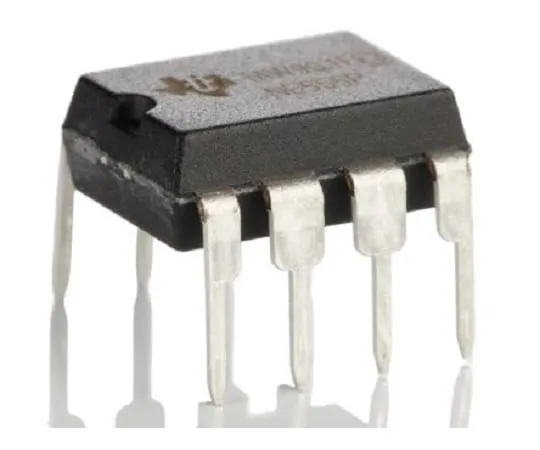

60-2985-20 High precision timer IC NE555P
model:
60-2985-20
brand:
TEXAS INSTRUMENTS
Product Description
Product Model: 60-2985-20Product Brand: TEXAS INSTRUMEN […]
Contact Us
Product Details
Product Model: 60-2985-20
Product Brand: TEXAS INSTRUMENTS
Features
- A series of highly stable precision timing circuits for accurate time delay or timing pulse generation.
- This timer can operate in mono-stable (one-shot) or non-stable (oscillator) mode with timing periods ranging from less than one microsecond to several minutes.
- In addition to the original bipolar type, low-power CMOS and LinCMOS types are also available.
- These devices support longer timing periods and can significantly reduce power consumption.
- Both single type (551, 555) and dual type (552, 556) timers are available.
Spec
- Implementation Type: Through Hole
- Timer Type: Standard
- Package Type: PDIP
- Number of internal timers: 1
- Pin Count: 8
- Operating Supply Voltage: 4.5~16 V
- Operating temperature: 0°C to +70°C
- Maximum static current: 15 mA
- Low level output current Max: 200 mA
- High level output current Max: -200 mA
- Length: 9.81 mm
- Height: 4.57 mm
- Width: 6.35 mm
