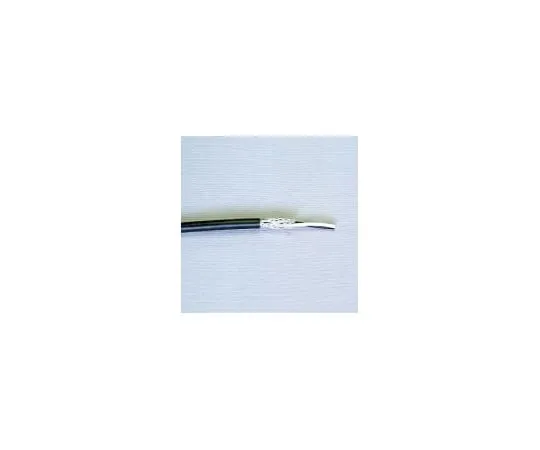

62-0829-97 Controller Link Cable ESPC 1Px0.5Sq 1m ESPC1PX0.5SQ
Product Description
Product Model: 62-0829-97Product Brand: FA Ubon Feature […]
Contact Us
Product Details
Product Model: 62-0829-97
Product Brand: FA Ubon
Features
- It is lead-free as a measure to reduce environmental pollution.
- It is non-transferable and does not transfer dirt or color to plastic products that are often ***d for office equipment and electrical components.
- Heat-resistant considering the usage environment in the factory.
- Oil resistant, flexible and easy to wire.
- With the *** of monocentric interposition, processing of interposition is easy and speedy.
- Characteristic Impedance: 100 Ω Type
Spec
- Cut length: 1m
- Format: ESPC 1P X 0.5SQ
- Cable color: Black
- Logarithm: 1P
- Cross-sectional area (mm2): 0.5
- Conductor configuration (number of element wire/element wire diameter (mm)): 7/0.32
- Outer diameter (mm): 0.96
- Polyethylene insulator: Thickness (mm): 0.67
- Outer diameter (mm): 2.3
- Tape thickness (mm): 0.03
- Braid shield element wire diameter (mm): 0.12
- Sheath thickness (mm): 0.85
- Finishing outer diameter approx. (mm): 7.0
- Withstand voltage (V/minute) (AC): 1000
- Insulation resistance (MΩ/km) (20℃): 10000 or higher
- Conductor resistance (Ω/km) (20℃): 34.0 or less
- Characteristic impedance (Ω) (1MHZ): 100±10
- Attenuation (dB/km) (1MHZ): 17.8 or less
- Withstand combustion: Equivalent to VW-1
