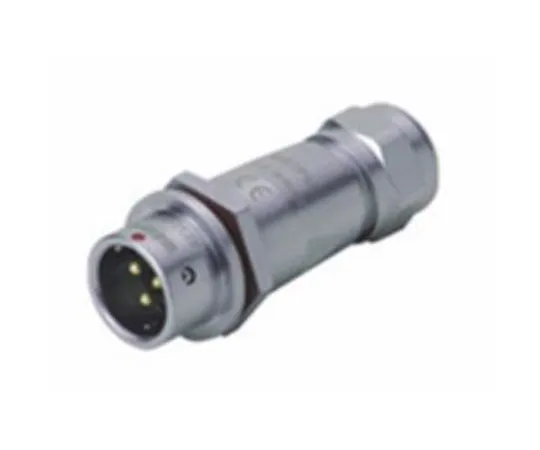

63-6952-09 RS PRO Cable Mount Connector, 3 Contacts, Miniature Connector 124-6719
Product Description
Product Model: 63-6952-09Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-6952-09
Product Brand: RS PRO
Features
- M12 Inline Push Pull Cable Plug These RS Pro push pull plugs are ideal candidates for a variety of applications. It has a convenient push-pull connection, making it ideal for situations where accidental dropouts occur. In addition, this industrial connector has an IP67 rating, making it suitable for harsh environments. If you choose a male connector, this version is recomm***ed.
- Features and Advantages
- Panel Cutout Hole Diameter: 12 mm 2 pins, 3 pins, 4 pins, 5 pins also available Cable Outer Diameter: 4 → 6.5 mm, see part numbers below; 124-6713 124-6713; 124-6714 124-6714; 124-6715 124-6715; 124-6716 124-6716 Cable outer diameter: 5 → 8 mm; 124-6717 124-6717; 124-6719 124-6719; 124-6720 124-6720; 124-6721 124-6721 Solder Terminal Chrome Plated Brass Shell Material Inline Cable Attached
Spec
- Number of Contacts:3
- Mounting Type:Cable Mount
- Connector Size:Miniature
- Plug/Socket:Plug
- Termination Method:Solder
- IP Rating:IP67
- Current Rating:13.0A
- Voltage Rating:250 V
- Mating Type:Push-Pull
- Body Orientation:Straight
- Housing Material:Metal
- Minimum Operating Temperature:-40°C
- CODE No.:124-6719
