61-7654-77 Speed Controller Small Union Straight Type φ4 JSMU4
Product Description
Product Model: 61-7654-77Product Brand: NIHON PISCO CO. […]
Contact Us
Product Details
Product Model: 61-7654-77
Product Brand: NIHON PISCO CO., LTD.
Features
- Speed control valve for driving equipment.
- After mounting, the tube removal angle can be changed by rotating the metal body and the resin body.
Spec
- Fluid ***d: Air
- Used pressure range: 0.05 - 1.0MPa
- Check valve operating pressure: 0.005MPa
- Operating temperature range: 0 - 60℃ (no freezing)
- RoHS supported
- Applicable tube size (outer diameter): φ4mm
- Applicable cylinder tube inner diameter (mm): max.φ20
- Package specification: Standard packaging
- Open ring (material): Black (POM)
- Resin body color (material): Black (PBT)
- Metal body material (process): Yellow copper (electroless nickel plating)
Related product recommendations
You may also be interested in the following products
automaticdiluter
3-7644-01 Spring Hose Inner Diameter 6 x Outer Diameter 11mm SP-6
model: 3-7644-01
brand: Togawa Industry Corporation
automaticdiluter
1-2895-04-01 Chemical-Resistant, Oil-Resistant, Food Non-PVC Pressure Resistant Hose ECOLON Hose Inner Diameter 12 mm x Outer Diameter 18.0 mm Length 1 m EC-12-1
model: 1-2895-04-01
brand: TOYOX CO., LTD.
automaticdiluter
2-797-19-80 Naflon (R) PTFE Tube (Millimeter Size) 6 x 8φ TOMBO No. 9003 1 m
model: 2-797-19-80
brand: NICHIAS Corporation
automaticdiluter

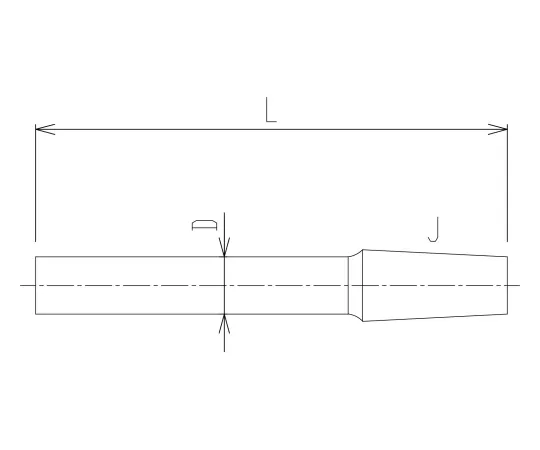

62-2088-03 ［Discontinued］Joint Male Long 2000-1230
