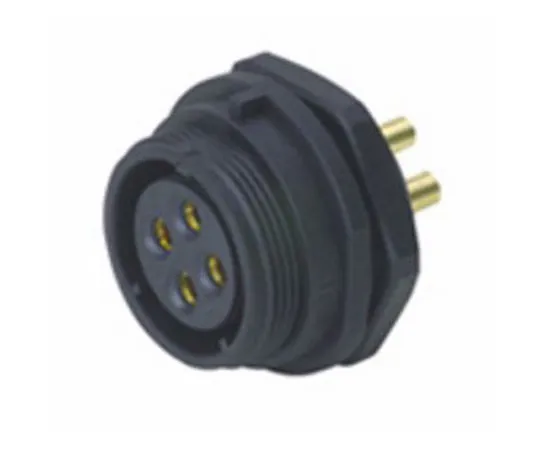

63-6951-67 RS PRO Panel Mount Connector, 5 Contacts 124-6673
Product Description
Product Model: 63-6951-67Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-6951-67
Product Brand: RS PRO
Features
- Front mounting socket 25 A Round connector (screw-in type) IP68
- These RS Pro screw-in sockets are ideal candidates for a variety of applications. This particular model has a large and sturdy shell reinforced with front mounting connections. In addition, this industrial connector has an IP68 rating, making it suitable for harsh environments. If you choose a female connector, we recomm*** this version.
- Features and Advantages
- Available with 2, 3 and 5 pins Allowable outer diameter of cable: 4.5 → 7 mm Thread contact termination High-quality nylon 66 Shell panel Cutout hole diameter: 21 mm
Spec
- Number of Contacts:5
- Mounting Type:Panel Mount
- Connector Size:Standard
- Plug/Socket:Socket
- Termination Method:Screw
- IP Rating:IP68
- Current Rating:25.0A
- Voltage Rating:500 V
- Mating Type:Threaded
- Body Orientation:Straight
- Housing Material:Polymer
- Contact Material:Brass
- CODE No.:124-6673
