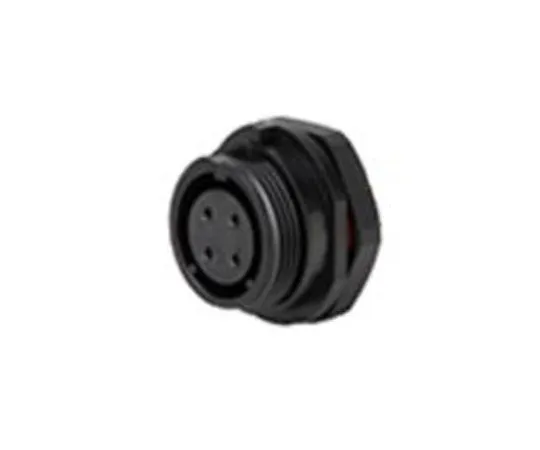

63-6951-49 RS PRO Panel Mount Connector, 4 Contacts 124-6654
Product Description
Product Model: 63-6951-49Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-6951-49
Product Brand: RS PRO
Features
- Front Mounting Socket 10 A/5 A Round Connector (Screw Type) IP68
- These RS Pro screw sockets are ideal candidates for a variety of applications. This particular model has a large, sturdy shell. In addition, it is also equipped with an IP68 rating, making it suitable for harsh environments. If you choose a female connector, we recomm*** this version.
- Features and Advantages
- Available with 2, 3 and 4 pins Allowed outer diameter of cable: 6 → 10 mm AWG 14 Crimped contact termination High-quality nylon 66 shell Panel cut-out hole diameter: 17 mm Convenient front mounting
Spec
- Number of Contacts:4
- Mounting Type:Panel Mount
- Connector Size:Standard
- Plug/Socket:Socket
- Termination Method:Crimp
- IP Rating:IP68
- Current Rating:5.0A
- Voltage Rating:500 V
- Mating Type:Threaded
- Body Orientation:Straight
- Housing Material:Polymer
- Maximum Operating Temperature:+85°C
- CODE No.:124-6654
