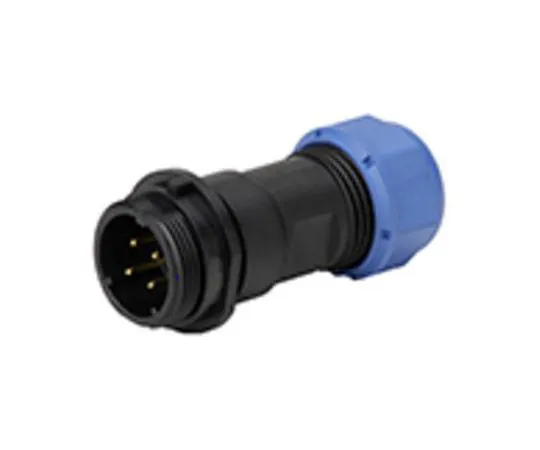

63-6951-46 RS PRO Cable Mount Connector, 4 Contacts 124-6651
Product Description
Product Model: 63-6951-46Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-6951-46
Product Brand: RS PRO
Features
- CE, RHOS approval
- Inline cable plug 10 A/5 A round connector (screw-in type) IP68
- These RS Pro screw-in plugs are ideal candidates for various applications. This particular model has a large, sturdy shell. In addition, it is also equipped with an IP68 rating, making it suitable for harsh environments. If you choose a male connector, this version is recomm***ed.
- Features and Advantages
- Allowable Outer Diameter of Cable: 6 → 10 mm AWG 14 (for 2 pole and 3 pole versions) or AWG 20 → 24 (4 pole version) Crimp Contact Termination High Quality Nylon 66 Shell Panel Cutout Hole Diameter: 17 mm
Spec
- Number of Contacts:4
- Mounting Type:Cable Mount
- Connector Size:Standard
- Plug/Socket:Plug
- Termination Method:Crimp
- IP Rating:IP68
- Current Rating:5.0A
- Voltage Rating:500 V
- Mating Type:Threaded
- Body Orientation:Straight
- Housing Material:Polymer
- Minimum Operating Temperature:-25°C
- CODE No.:124-6651
