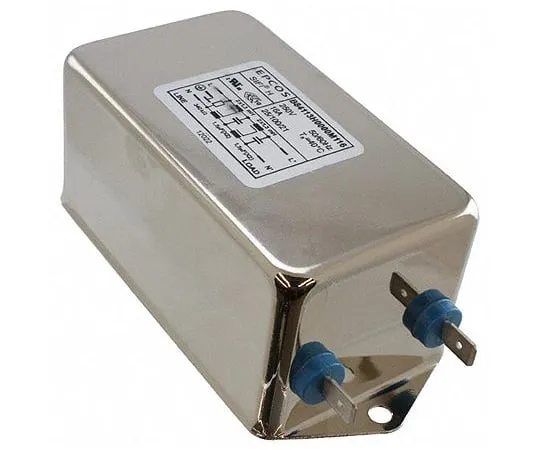

63-6947-80 EMC Filter Single Phase 36 A Chassis Mount 3.3 x 2 μF 0.5 x 4 mH 0 mA 2 Stage UL 1283 B84113H0000M136
Product Description
Product Model: 63-6947-80Product Brand: EPCOS Features […]
Contact Us
Product Details
Product Model: 63-6947-80
Product Brand: EPCOS
Features
- ENEC10, UL, cUL
- B84113H
- The single-phase B841113H series has a low leakage current. In addition, it has a compact design for easy installation. Used in a variety of applications such as switch mode power for communications and data systems.
- SIFI-H (For Very High Insertion Loss) Terminal: (Case B) Maximum 16 A Tab Connector (6.3 x 0.8 mm) (Case G) Threaded M5 Stud (For 20 to 36 A Filter) Polyurethane Pouring (UL94 V-0)
Spec
- Quantity: 1 Piece
- Maximum rated current: 36 A
- Maximum rated voltage: 250 V ac/dc
- mounting type: chassis mount
- *** styles: screws
- Phase: 1
- Series: B84113H
- Operating frequency: 50 → 60 Hz
- Length: 133 mm
- Depth: 58 mm
- Height: 53 mm
- Dimensions: 133 x 58 x 53 mm
- Leak current: 0 mA
- Operating temperature Max: +100°C
- Standard Compliance: UL 1283
- RoHS compliance status: Compliance
- Securities Code: 124-5308
