Electronic/Electrical Parts and Controll Equipments

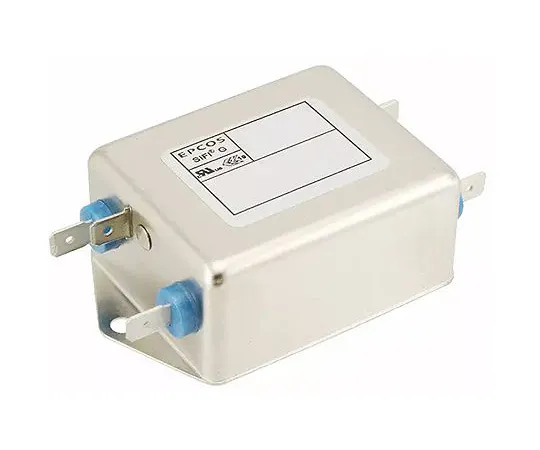

63-6947-69 EMC Filter Single Phase 12 A Chassis Mount 0.68 x 2 μF 1.6 x 2 mH 0 mA 1 Stage UL 1283 B84112G0000M112
Product Description
Product Model: 63-6947-69Product Brand: EPCOS Features […]
Contact Us
Product Details
Product Model: 63-6947-69
Product Brand: EPCOS
Features
- B84112 G Series
- The TDK B84112 G Series is a power supply filter for single-phase systems. Composed of a metal case and a 2-line filter, it is compact and easy to install. SIFI-G provides excellent insertion loss performance. Rated voltage VR: 250 V ac/dc. Rated current IR: 2 A → 36 A
- Application: Industrial Electronics Switch Mode Power Communication System Data System DC Application Medical Equipment (Version B84112G0000M*)
Spec
- Quantity: 1 Piece
- Maximum rated current: 12 A
- Maximum rated voltage: 250 V ac/dc
- mounting type: chassis mount
- *** styles: lug, tab connector
- Phase: 1
- Series: B84112G
- Operating frequency: 50 → 60 Hz
- Length: 63 mm
- Depth: 51 mm
- Capacitance: 0.68 x 2 μF
- Dimensions: 63 x 51 x 29 mm
- Leak current: 0 mA
- Operating temperature Max: +100°C
- Standard Compliance: UL 1283
- RoHS compliance status: Compliance
- Securities Code: 124-5296
