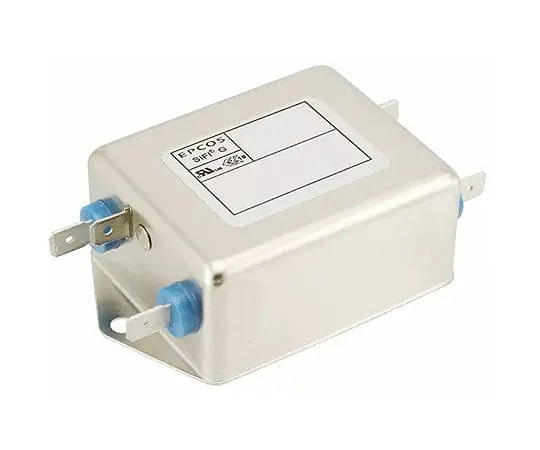

63-6947-64 EMC Filter Single Phase 2 A Chassis Mount 0.1 x 25 μF 12 x 2 mH 0 mA 1 Stage UL 1283 B84112G0000M020
Product Description
Product Model: 63-6947-64Product Brand: EPCOS Features […]
Contact Us
Product Details
Product Model: 63-6947-64
Product Brand: EPCOS
Features
- UL Certified, CSA Certified, VDE, SEV, SEMKO, DEMKO
- B84112 Series
- EPCOS B84112 series RFI 2 - line filter for single-phase systems. RFI filters are compact, easy to install, and leakage current optimized. Rated voltage VR: 250 V ac/dc. Rated current IR: 1 A → 20 A
- Application: Industrial Electronics Switch Mode Power Communication DC Application Data System
Spec
- Quantity: 1 Piece
- Maximum current rating: 2 A
- Maximum rated voltage: 250 V ac/dc
- mounting type: chassis mount
- *** styles: lug, tab connector
- Phase: 1
- Series: B84112G
- Operating frequency: 50 → 60 Hz
- Length: 48 mm
- Depth: 45 mm
- Capacitance: 0.1 x 25 μF
- Dimensions: 48 x 45 x 26 mm
- Leak current: 0 mA
- Operating temperature Max: +100°C
- Standard Compliance: UL 1283
- RoHS compliance status: Compliance
- Securities Code: 124-5291
