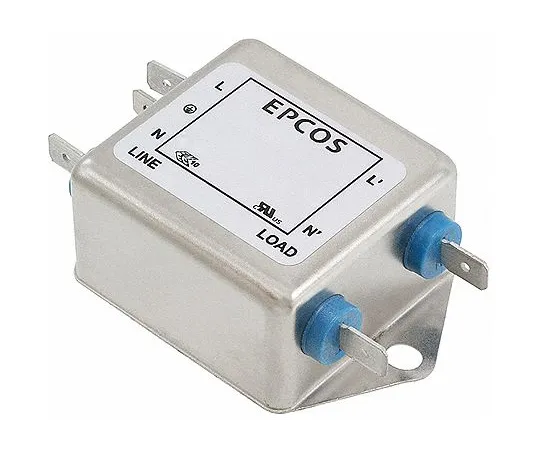

63-6947-62 EMC Filter Single Phase 16 A Chassis Mount 0.1 x 2 μF 0.65 x 2 mH 0 mA 1 Stage UL 1283 B84111F0000M116
Product Description
Product Model: 63-6947-62Product Brand: EPCOS Features […]
Contact Us
Product Details
Product Model: 63-6947-62
Product Brand: EPCOS
Features
- ENEC10, UL, cUL
- B84111F Series
- The single-phase B84111F series has optimized leakage current. In addition, it has a compact design for easy installation. Used in a variety of applications such as switch mode power for communications and data systems.
- SIFI-F (for Standard Insertion Loss) Terminal: Up to 20 A Tab Connector (6.3 x 0.8 mm) Threaded M5 Stud (for 25 to 36 A Filter) Polyurethane Pouring (UL94 V-0)
Spec
- Quantity: 1 Piece
- Maximum rated current: 16 A
- Maximum rated voltage: 250 V ac/dc
- mounting type: chassis mount
- *** styles: lug, tab connector
- Phase: 1
- Series: B84111F
- Operating frequency: 50 → 60 Hz
- Length: 48 mm
- Depth: 45 mm
- Height: 26 mm
- Dimensions: 48 x 45 x 26 mm
- Leak current: 0 mA
- Operating temperature Max: +100°C
- Standard Compliance: UL 1283
- RoHS compliance status: Compliance
- Securities Code: 124-5287
