Electronic/Electrical Parts and Controll Equipments

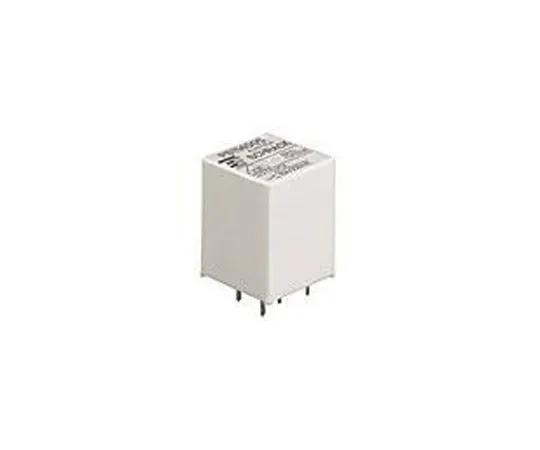

63-6944-11 Relay 12 V dc SPNO 10 A Board-mounted PB PB134012
model:
63-6944-11
brand:
TE Connectivity
Product Description
Product Model: 63-6944-11Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-6944-11
Product Brand: TE Connectivity
Features
- VDE and UL
- TE Connectivity RZ Series PCB Power Relay
- RZ Series PCB Mounted Power Relay Power Relay with 400 mW DC coil and 5 kV/10 mm reinforced insulation. These RZ Series PCB-mounted power relays are fluxtight and have silver-nickel alloy contacts. 12 A version of the RZ series PCB-mounted power relay is 3.5 mm pinned 16 A version of the RZ series PCB-mounted power relay is 5 mm pinned
- 3.2 or 5 mm pinned Dimensions: 29.00 x 12.70 x 15.70 mm Complies with IEC60335-1 requirements for the appliance industry
Spec
- Quantity: 1 bag (5 pieces)
- Coil voltage: 12 V dc
- Contact configuration: SPNO
- Switching current: 10 A
- Coil resistance: 400 ohms
- Maximum switching voltage AC: 400 V
- Application type: Heating temperature controller, small home appliances, white goods
- Length: 15 mm
- Depth: 15 mm
- Height: 20 mm
- Dimensions: 15 x 15 x 20 mm
- Operating temperature range: -40 to + 85 degrees C
- RoHS compliance status: Compliance
- Securities Code: 124 -4490
