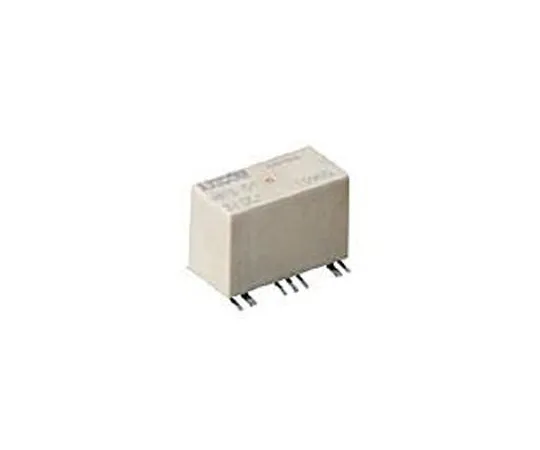

63-6944-06 Radio frequency relay (RF relay) 50 ohm SPDT 3 V dc 1462051-1
model:
63-6944-06
brand:
TE Connectivity
Product Description
Product Model: 63-6944-06Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-6944-06
Product Brand: TE Connectivity
Features
- High frequency relay for high frequency HF3 series
- 50 Ω system. Mono table or bi-table coil can be selected with 1-pole SMT plastic shield configuration.
- Frequency Range: DC → 3 GHz Available with 50 Ω and 75 Ω impedance Coil Power Consumption: 140 mW Dimensions: 14.6 mm (L) x 7.2 mm (W) x 10 mm (H)
Spec
- Number of pieces: 1
- Maximum operating time: 3 GHz
- Coil resistance: 64 ohms
- Contact resistance: 100 m.OMEGA.
- Insertion loss: 0.35 dB @ 3 GHz
- Isolation: 45 dB @ 3 GHz
- VSWR voltage standing-wave ratio: 1.2 @ 3 GHz
- Impedance: 50 ohms
- Contact configuration: SPDT
- Coil voltage: 3V dc
- Mounting type: Surface mounting
- Contact Voltage: 220 V dc, 250 V ac
- Coil power: 140 mW
- Contact Material: Gold
- Number of poles: 1
- RoHS compliance status: Compliance
- Securities Code: 124 -4484
