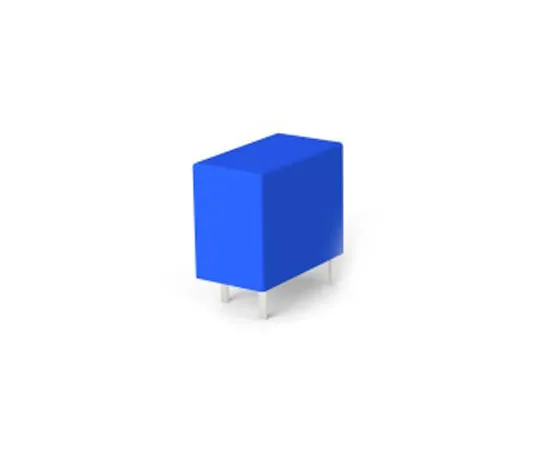

63-6943-96 Relay 5 V dc SPNO 10 A Board-mounted OJE OJE-SH-105HM000
model:
63-6943-96
brand:
TE Connectivity
Product Description
Product Model: 63-6943-96Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-6943-96
Product Brand: TE Connectivity
Features
- VDE 40007630, TUV R 50139166, UL E82292, CQC 03001007764
- Power Relays, Substrates, SPST OJE Series
- OJE Series power relays are designed for HVAC and industrial control applications.
Spec
- Quantity: 1 bag (5 pieces)
- Coil voltage: 5V dc
- Contact configuration: SPNO
- Switching current: 10 A
- Series: OJE
- Maximum switching voltage AC: 277 V
- Maximum switching voltage DC: 30 V
- Application Type: Equipment, Industrial Control
- Length: 18.2 mm
- Depth: 10.2 mm
- Height: 14.7 mm
- Dimensions: 18.2 x 10.2 x 14.7 mm
- Withstand voltage between coil and contact: 3 kV rms
- RoHS compliance status: Compliance
- Securities Code: 124 -4471
