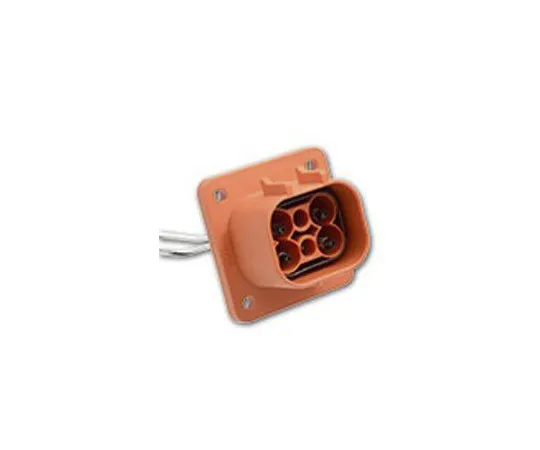

63-6942-90 Connector for Electric Vehicles 2 rows 4 poles 13 to 70 A 800 V ac Male Orange ELR4A04C10-737487-4AP4
Product Description
Product Model: 63-6942-90Product Brand: Amphenol Featur […]
Contact Us
Product Details
Product Model: 63-6942-90
Product Brand: Amphenol
Features
- ePower-Lite Connector, A-Coding
- Amphenol's ePower-Lite is a small, lightweight connector for hybrid electric vehicles. The rugged heat-resistant shell ensures that the connector dielectric is protected. This connector can be installed and repaired on site and has a CPA to prevent accidental occlusion. This low resistance connector with RADSOK technology features high current, low T-rise and low voltage drop. With its compact design and space-saving features, ePower-Lite is ideal for EV and hybrid applications.
- Features and benefits: Compact, lightweight connector A Coding insertion and removal times Durable over 100 times Waterproof: IP67 Contact protection: IEC60529 Fire retardant rating: UL94V-0
Spec
- Number of pieces: 1
- Range: RADSOK
- Series: EL
- Connector type: RADSOK Receptacle with HVIL
- Number of lines: 2
- Number of contacts: 4
- Cable size: 10 mm 2
- Current rating: 13 to 70 A
- Operating voltage: 800 V ac
- Connector G***er: Female
- Contact G***er: Male
- Key Type: A
- Height: 48 mm
- RoHS compliance status: Compliance
- Securities Code: 124 -4115
