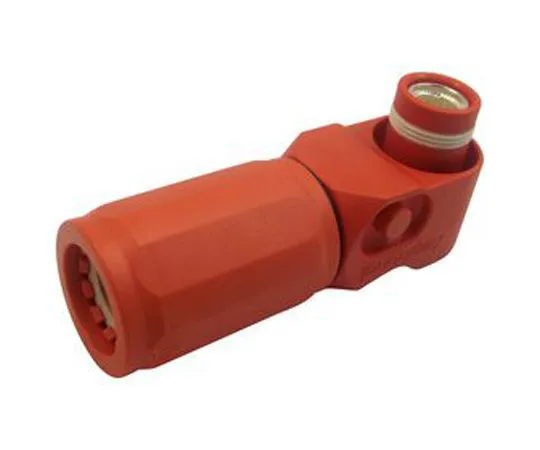

63-6941-91 Connectors for Electric Vehicless 1 Row 1 Pole 300 A 1000 V ac/dc Female Orange C 10 -730190 - 0701 SLPPC70BSO1
Product Description
Product Model: 63-6941-91Product Brand: Amphenol Featur […]
Contact Us
Product Details
Product Model: 63-6941-91
Product Brand: Amphenol
Features
- 10.3 mm SurLok Plus Plug (For 70 mm, Key Position: 180 Degrees)
- This SurLok Plus series plug from Amphenol is a compact, quick-fit crimping lug with a quick lock/release connection. This plug has a sturdy, environment-resistant seal, can be installed on site, and is extremely reliable. R4 Radsock technology provides reliable, high-tensile connections to highly conductive surfaces. This plug has a pin diameter of 10.3 mm and terminates 70 mm2 wires.
- Features and Benefits: Plug rotates 360 °Contact-Proof Spring-Locked Type Has a key mechanism to prevent accidental biting (Key position: 180 °) IP67 Flame Retardant rating: UL94-V0
- Application: SurLok Plus Series connectors are commonly ***d in electric vehicle applications (EV/HEV) and railways. It is also ***d for process control, medical, and BMS/power storage applications.
Spec
- Number of pieces: 1
- Range: R4 RADSOK
- Series: SurLok Plus
- Connector type: RADSOK plug (with HVIL)
- Number of lines: 1
- Number of contacts: 1
- Cable size: 70 mm 2
- Current rating: 300 A
- Operating voltage: 1000 V ac/dc
- Connector G***er: Male
- Contact G***er: Female
- Mounting type: cable Mount
- RoHS compliance status: Compliance
- Securities Code: 124 -4007
