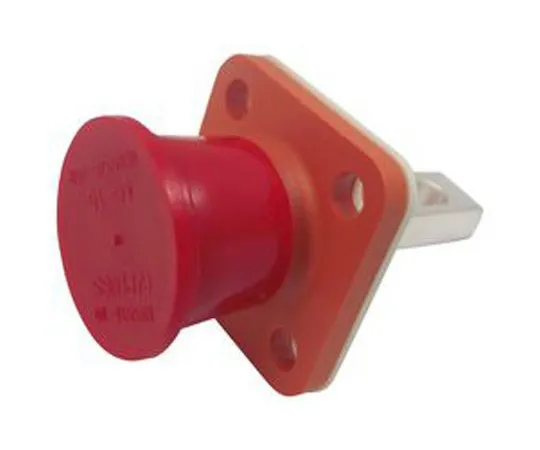

63-6941-46 Connectors for Electric Vehicless 1 Row 1 pole 120 A 1000 V ac/dc Male Red C 10 -730187 -200 SLPRA25CPSR
Product Description
Product Model: 63-6941-46Product Brand: Amphenol Featur […]
Contact Us
Product Details
Product Model: 63-6941-46
Product Brand: Amphenol
Features
- 5.7 mm SurLok Plus Receptacle (for 25 mm)
- This SurLok Plus series receptacle from Amphenol is a compact, quick-fit crimping lug with a panel mounting flange. This receptacle has a sturdy, environment-resistant seal, can be installed on site, and is extremely reliable. R4 Radsock technology provides reliable, high-tensile connections to highly conductive surfaces. This receptacle has a pin diameter of 5.7 mm and is designed to terminate 25 mm2 wires.
- Features and Benefits: Anti-Contact Key MechanismSpring-Locked IP67 Flame Retardant Rating: UL94-V0
- Use: SurLok Plus Series connectors are commonly ***d in electric vehicle applications (EV/HEV) and railways. It is also ***d for process control, medical, and BMS/power storage applications.
Spec
- Number of pieces: 1
- Range: R4 RADSOK
- Series: SurLok Plus
- Connector type: RADSOK Receptacle with HVIL
- Number of lines: 1
- Number of contacts: 1
- Cable size: 25 mm 2
- Current rating: 120 A
- Operating voltage: 1000 V ac/dc
- Connector G***er: Female
- Contact G***er: Male
- Operating temperature Min: -40 degrees C
- RoHS compliance status: Compliance
- Securities Code: 124 -3961
