63-6941-26 Connectors for Electric Vehicless 1 Row 1 Pole 200 A 1000 V ac/dc Female Orange C 10 -731951 - 011 SLPIPB50BSO1
Product Description
Product Model: 63-6941-26Product Brand: Amphenol Featur […]
Contact Us
Product Details
Product Model: 63-6941-26
Product Brand: Amphenol
Features

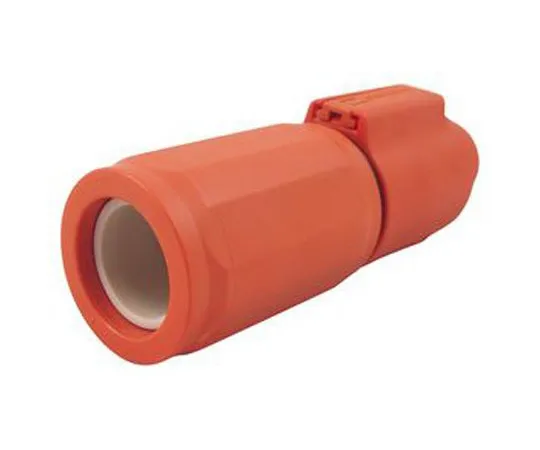

- 8 mm SurLok Plus Plug (For 50 mm, Key Position: 180 Degrees)
- This SurLok Plus series plug from Amphenol is a compact, quick-fit crimping lug with a quick lock/release connection. This plug has a sturdy, environment-resistant seal, can be installed on site, and is extremely reliable. R4 Radsock technology provides reliable, high-tensile connections to highly conductive surfaces. This plug has a pin diameter of 8 mm and terminates 50 mm2 wires.
- The plug is 360 ° rotatable, contact proof, spring locked, with key mechanism to prevent accidental biting (key position: 180 °) IP67 Flame Retardant rating: UL94-V0
- Use: SurLok Plus Series connectors are commonly ***d in electric vehicle applications (EV/HEV) and railways. It is also ***d for process control, medical, and BMS/power storage applications.
Spec
- Number of pieces: 1
- Range: R4 RADSOK
- Series: SurLok Plus
- Connector type: RADSOK plug (with HVIL)
- Number of lines: 1
- Number of contacts: 1
- Cable size: 50 mm 2
- Current rating: 200 A
- Operating voltage: 1000 V ac/dc
- Connector G***er: Male
- Contact G***er: Female
- Pin diameter: 8 mm
- RoHS compliance status: Compliance
- Securities Code: 124 -3941
