Electronic/Electrical Parts and Controll Equipments
63-6940-82 RS PRO Current Transformer, , 25A Input, 500:1 124-3896
Product Description
Product Model: 63-6940-82Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-6940-82
Product Brand: RS PRO
Features

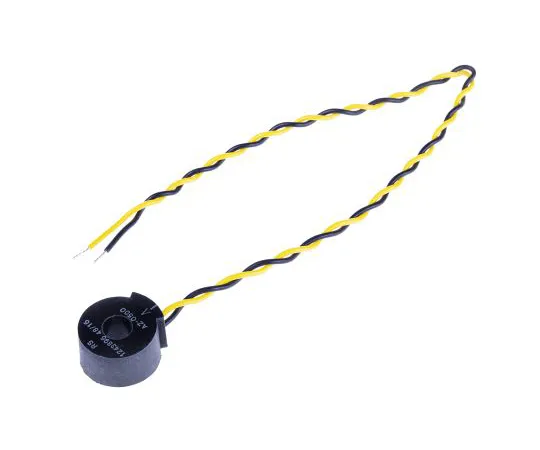

- RS Pro Flying Lead Current Transformers These RS Pro flying lead current transformers are small transformers with high output voltage and linearity. 24 AWG 300 V rated voltage and 250 mm long wired flying leads for easy mounting. All materials conform to UL94-V0. The center hole corresponds to a 6.3 mm tab. Operating temperature range: -40 °C → +85 °C.
Spec
- Current Ratio:500:1
- Bore Size:7mm
- Input Current:25A
- Minimum Temperature:-40°C
- Maximum Temperature:+85°C
- Dimensions:19 x 11.5 x 21.5 mm
- CODE No.:124-3896
