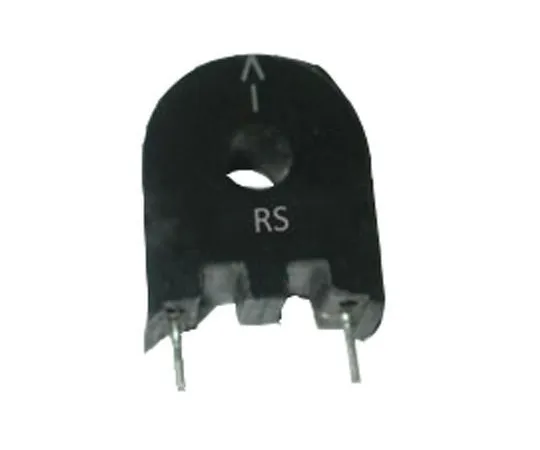

63-6940-67 RS PRO Current Transformer, , 15A Input, 500:1 124-3881
Product Description
Product Model: 63-6940-67Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-6940-67
Product Brand: RS PRO
Features
- RS Pro Substrate Mounting Current Detection Transformer The RS Pro current detection transformer is designed for AC current control, monitoring, and measurement. These current transformers are fully enclosed and provide optimal substrate mounting. The sensor acts as a feedback element between the output and the pulse control circuit to precisely adjust the switch mode power supply.
- Features Frequency Range: 20 kHz → 200 kHzPrimary Rated Current: Up to 15 APrimary Side to Secondary Side Isolation: 2500 V acOptimum Performance in Specified Current and Frequency Ranges Fully Compatible with RoHS Applications: Lighting Switch Control, Current Switch Mode of Ultrasonic Device Power Supply Insulation Current Feedback Signal Motor Current Load/Overload High Resolution Sonar Current Insulation Bidirectional Current Sensor with Full Wave Bridge Rectifier
Spec
- Current Ratio:500:1
- Bore Size:5mm
- Input Current:15A
- Minimum Temperature:-40°C
- Maximum Temperature:+120°C
- Mounting Type:PCB Mount
- CODE No.:124-3881
