Features

• Universal MATE-N-LOK Board Header Connector for TE Connectivit Glow Wire

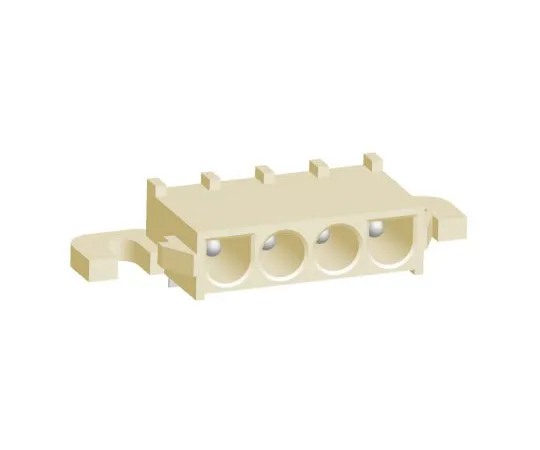

• Universal MATE-N-LOK Board Header Connector for TE Connectivit Glow Wire The Universal MATE-N-LOK Board Header is designed to meet the requirements of UL94 V-0 as well as the latest Glow Wire Test (GWT) requirements in accordance with IEC60335-1.　These universal MATE-N-LOK board headers have a pitch spacing of 6.35 mm and are designed with specially designed materials compatible with high-flame-retardant glow wires.　These universal MATE-N-LOK headers are equipped with a positive blocking latch to ensure reliable knotting and prevent accidental knotting due to strong vibration or impact.　This header is polarized. Prevents accidental bite. The egg crate design also improves safety.　These glow wire-compliant universal MATE-N-LOK headers provide pin or socket contacts so that they can be engaged with the glow wire-compliant universal MATE-N-LOK contact housing.　The following headers have pin contacts: Product number; 124-3471 124-3471,; 124-3473 124-3473,; 124-3474 124-3474,; 124-3477 124-3477,; 124-3478 124-3478,; 124-3481 124-3481,; 124-3482 124-3482,; 124-3485 124-3485,; 124-3486 124-3486,; 124-3487 124-3487,; 124-3491 124-3491,; 124-3493 124-3493,; Headers below 124-3496 124-3496 have socket contacts. Product number; 124-3475 124-3475,; 124-3476 124-3476,; 124-3479 124-3479,; 124-3480 124-3480,; 124-3483 124-3483,; 124-3484 124-3484,; 124-3489 124-3489,; 124-3490 124-3490,; 124-3492 124-3492,; 124-3495 124-3495,; 124-3497 124-3497
• Features and benefits: Glow wire UL94 V-0 compliant with IEC60335-1 Strong, reliable and excellent electrical performance Positive blocking latch provides reliable mesh connection Polarized housing prevents accidental bite Finger-proof design of egg crate Provide pin or socket contacts
• Use: These glow wire universal MATE-N-LOK board headers are ideal for *** in applications requiring compliance with IEC60335-1 and UL94 V-0.　Typical applications for these glow wire general purpose MATE-N-LOK headers include consumer electronics, desktop computers, HVAC equipment, lighting systems, security systems, industrial controls, and storage/networking systems.
