Features

• User Manual CD, Quick Start Guide, Power Cord, Switchable Passive Probes (1 per channel)

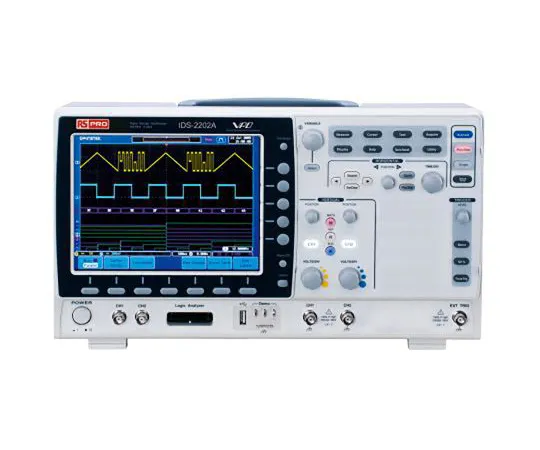

• RS Pro IDS-2000A Series Visual Persistence Oscilloscope
• RS Pro IDS-2000A Series Digital Storage Oscilloscopes *** Visual Persistence Oscilloscope (VPO) technology, which provides waveform shading to distinguish signals from one another based on frequency (you can also *** color mode to distinguish the frequency of different waveforms).　The IDS-2000A series has a maximum record length of 2 Mpts and comes standard with waveform retrieval and segment memory.　Memory is ***d efficiently beca*** important events can be captured and stored in segment memory (2048 sections) for monitoring and irrelevant waveforms can be ignored.　The IDS-2000A allows you to search and mark waveform sections in full memory that meet ***r-defined search criteria and threshold levels.　Use the Zoom window and Play/Pa*** buttons to navigate any waveform efficiently.　With a high waveform update speed of 80,000 waveforms/second, it is possible to accurately capture and examine entry signals and undetectable defects without omission.
• Features and Benefits: Real-time sampling rate: 2 GSa/sec Equivalent time sampling rate (ETSR): 100 GSa/sec Maximum record length: 2 Mpts 8 inches 800 x 600 High-resolution TFT LCD display Vertical range: 1 mV/div → 10 V/div Time base range: 1 ns/div → 100 s/div Waveform update speed: 80,000 Waveforms/sec Built-in segment memory and waveform search function Zoom window and automatic playback/pa*** 36 measurement function RS-232C interface and USB port PC software and driver can be downloaded free of charge Rear panel security slot (for connecting Standard Kensington Style Lock) Dimensions: 380 x 220 x 145 mm Weight: approx. 4.2 kg Application: general industrial electronic/electrical engineering signal analysis trouble diagnosis malfunction debugging system development for education
