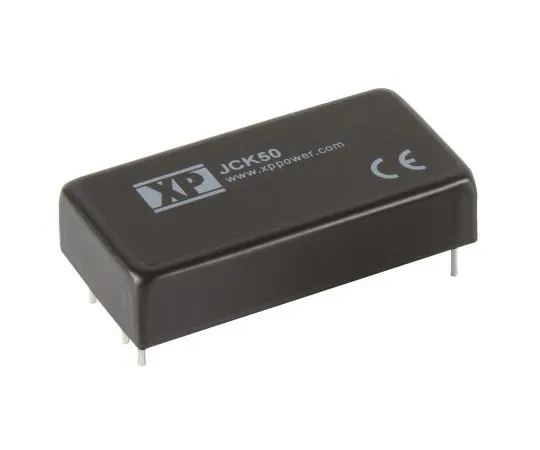

63-6926-64 Insulation DC-DC Converter Vout: 3.3 V dc 9 to 18 V dc 50 W 12 V dc JCK5012S3V3
Product Description
Product Model: 63-6926-64Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6926-64
Product Brand: XP Power
Features
- XP Power-JCK Series Insulated DC-DC Converter • The XP Power IML02 series DC-DC converter is a reliable and robust solution for a wide range of applications. This series is ho***d in a six-sided metal case. The IML02 series has a remote on/off function that can be adapted to various applications.
- Features and Advantages Tuned single output. 2:1 input range. Operating temperature range: -40 °C → +95 °C Insulation breakdown voltage: 1600 V dc High power density. A remote on/off function is provided. Six-sided metal case. Industry standard protection such as 4000 V ac insulation and 1 x MOPP @ 250 V ac.
Spec
- Quantity: 1 piece
- Output Voltage: 3.3 V dc
- Output voltage adjustment range: ± 10%
- Input voltage range: 9 to 18 V dc
- Input voltage nominal: 12 V dc
- insulation Voltage: 1600 (Minimum) V dc
- Rating Power: 50 W
- Output Current: 10 A
- Mounting type: through hole
- Number of outputs: 1
- Efficiency: 90%
- Road regulation: ± 0.5%
- Maximum temperature: + 95 degrees C
- Series: JCK 50
- RoHS compliance status: Compliance
- Securities Code: 124 - 0989
