63-6926-43 Insulation DC-DC Converter Vout: ± 15 V dc 10.8 to 13.2 V dc 2 W 12 V dc IML0212D15
Electronic/Electrical Parts and Controll Equipments

63-6926-43 Insulation DC-DC Converter Vout: ± 15 V dc 10.8 to 13.2 V dc 2 W 12 V dc IML0212D15

model: 63-6926-43
brand: XP Power

Product Description

Product Model: 63-6926-43Product Brand: XP Power Featur […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-6926-43
Product Brand: XP Power

Features

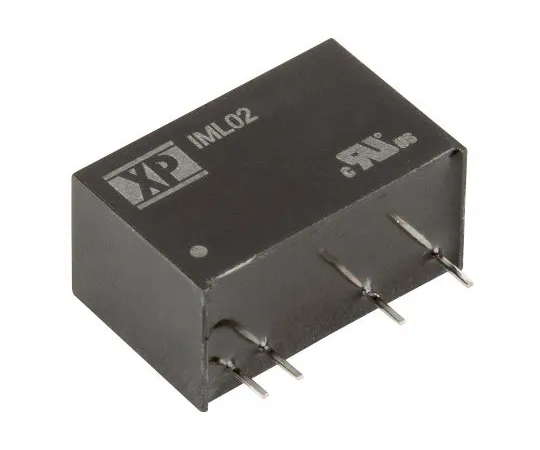

  • XP Power-IML02 Series Insulated DC-DC Converters
  • The XP Power IML02 series medical-standard certified DC-DC converters provide a reliable and robust solution for a wide range of applications. The IML02 series has single and dual output options for flexible implementation. This series is included in the SIP7 package for easy footprint consolidation. The IML02 series provides 4000 V ac insulation and 1 x MOPP @ 250 V ac.
  • Features and Advantages Conform to medical standards worldwide. SIP07 package. Operating temperature range: -40 °C → +85 °C Full load 4000 V ac insulation at ambient temperature 85 °C and industry standard protection such as 1 x MOPP @ 250 V ac.

Spec

  • Quantity: 1 piece
  • Output Voltage: ± 15 V dc
  • Input voltage range: 10.8 to 13.2 V dc
  • Input voltage nominal: 12 V dc
  • insulation Voltage: 4 (Minimum) kV ac
  • Rating Power: 2W
  • Output current: ± 66 mA
  • Mounting type: through hole
  • Number of outputs: 2
  • Medical standards certification: Yes
  • Package: SIP7
  • Load regulation: 10%
  • Maximum temperature: + 85 degrees C
  • Series: IML02
  • RoHS compliance status: Compliance
  • Securities Code: 124 - 0968
