63-6926-29 Insulation DC-DC Converter Vout: ± 3.3 V dc 4.5 to 5.5 V dc 2 W 5 V dc IML0205D03
Product Description
Product Model: 63-6926-29Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6926-29
Product Brand: XP Power
Features

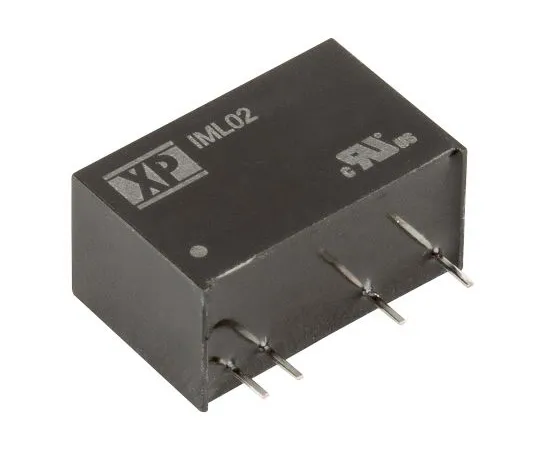

- XP Power-IML02 Series Insulated DC-DC Converters
- The XP Power IML02 series medical-standard certified DC-DC converters provide a reliable and robust solution for a wide range of applications. The IML02 series has single and dual output options for flexible implementation. This series is included in the SIP7 package for easy footprint consolidation. The IML02 series provides 4000 V ac insulation and 1 x MOPP @ 250 V ac.
- Features and Advantages Conform to medical standards worldwide. SIP07 package. Operating temperature range: -40 °C → +85 °C Full load 4000 V ac insulation at ambient temperature 85 °C and industry standard protection such as 1 x MOPP @ 250 V ac.
Spec
- Quantity: 1 piece
- Output Voltage: ± 3.3 V dc
- Input voltage range: 4.5 to 5.5 V dc
- Input voltage nominal: 5V dc
- insulation Voltage: 4 (Minimum) kV ac
- Rating Power: 2W
- Output current: ± 300 mA
- Mounting type: through hole
- Number of outputs: 2
- Medical standards certification: Yes
- Package: SIP7
- Load regulation: 10%
- Maximum temperature: + 85 degrees C
- Series: IML02
- RoHS compliance status: Compliance
- Securities Code: 124 0954
