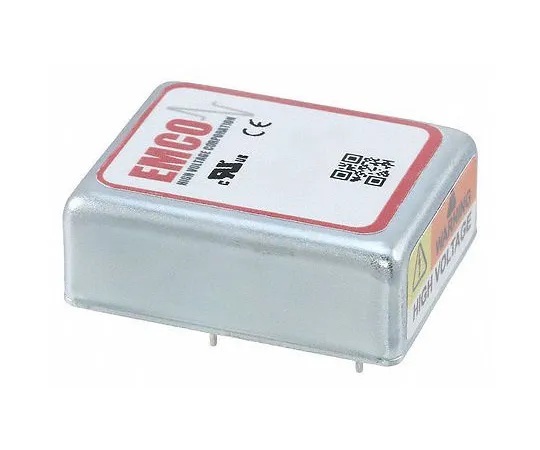

63-6909-93 DC-DC Converter Non- Insulation high voltage Type 1 3.3 mA 300 V dc 1 W C03
Product Description
Product Model: 63-6909-93Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6909-93
Product Brand: XP Power
Features
- UL, RoHS
- XP Power DC- High Voltage DC Non-Insulating Converter C Series
- C Series is a miniature high voltage power supply. High accuracy and programmability make it ideal for small and delicate devices.
- Features and Benefits: Rectifier Low Noise, Quasi-Sine Wave Oscillator Miniature Size Programmable Output: 0 → 100% High Stability Wide Input Voltage Range Low EMI/RFI High Reliability Steel Case + Insulated Case Earth Sealed Calibration Enduring Dip Cleaning Process External Gain Adjustment Application: Photomultiplier Solid State Detector Electrophoresis Piezo Device Capacitor Charging EO Lens
Spec
- Quantity: 1 piece
- Output Voltage: 300 V dc
- Input voltage range: 11.5 to 16 V dc
- Rating Power: 1W
- Output current: 3.3 mA
- Number of outputs: 1
- Minimum temperature: -10 degrees C
- Maximum temperature: + 60 degrees C
- MTBF Average Failure interval: > 2.6 million h
- RoHS compliance status: Compliance
- Securities Code: 123 -8352
