63-6909-82 0 to 5 V dc DC-DC Converter Insulation type high voltage output type 7.5 mA 200 V dc AH02P-5
Electronic/Electrical Parts and Controll Equipments

63-6909-82 0 to 5 V dc DC-DC Converter Insulation type high voltage output type 7.5 mA 200 V dc AH02P-5

model: 63-6909-82
brand: XP Power

Product Description

Product Model: 63-6909-82Product Brand: XP Power Featur […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-6909-82
Product Brand: XP Power

Features

  • UL, RoHS

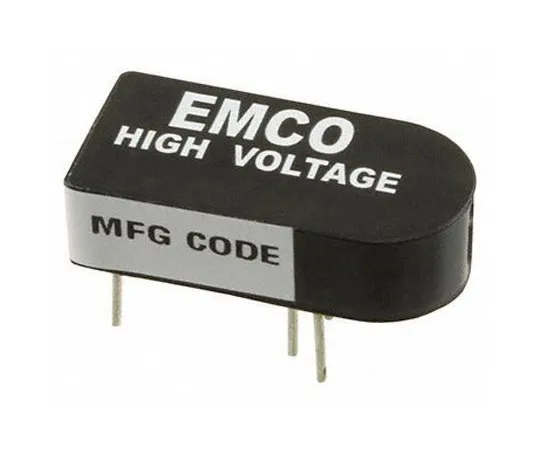

  • XP Power Insulated DC-High Voltage DC Converter A Series
  • A Series Power Insulated DC-High Voltage DC Converter is ultra-miniature size. This converter is ideal for applications that want to minimize size and weight.
  • Features and Advantages: Input/Output Proportional Quasi-Sinusoidal Oscillator Control Pin Current - Low Leakage Low Input/Output Capacitance Input/Output Galvanic Isolation Short circuit protection over 1 minute No minimum load ^2 No external components
  • Application: Charging Avalanche Photodiode Capacitor Electrophoresis Photomultiplier Tube Piezo Device Mass Spectrometry Maintaining Ion Pump

Spec

  • Quantity: 1 piece
  • Output Voltage: 200 V dc
  • Input voltage range: 0 to 5V dc
  • Output current: 7.5 mA
  • Mounting type: through hole
  • Number of outputs: 1
  • Minimum temperature: -25 degrees C
  • Maximum temperature: + 75 degrees C
  • Series: AH
  • RoHS compliance status: Compliance
  • Securities Code: 123 -8341
