Electronic/Electrical Parts and Controll Equipments

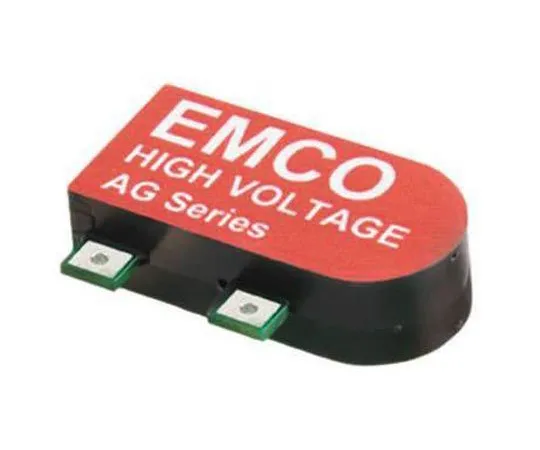

63-6909-59 0 to 5 V dc DC-DC Converter Insulation type high voltage output type 2 mA 500 V dc AG05P-5
Product Description
Product Model: 63-6909-59Product Brand: XP Power Featur […]
Contact Us
Product Details
Product Model: 63-6909-59
Product Brand: XP Power
Features
- UL, RoHS
- XP Power Insulated DC-High Voltage DC Converter A Series
- A Series Power Insulated DC-High Voltage DC Converter is ultra-miniature size. This converter is ideal for applications that want to minimize size and weight.
- Features and Advantages: Input/Output Proportional Quasi-Sinusoidal Oscillator Control Pin Current - Low Leakage Low Input/Output Capacitance Input/Output Galvanic Isolation Short circuit protection over 1 minute No minimum load ^2 No external components
- Application: Charging Avalanche Photodiode Capacitor Electrophoresis Photomultiplier Tube Piezo Device Mass Spectrometry Maintaining Ion Pump
Spec
- Quantity: 1 piece
- Output Voltage: 500 V dc
- Input voltage range: 0 to 5V dc
- Output current: 2 mA
- Mounting type: Surface mounting
- Number of outputs: 1
- Minimum temperature: -25 degrees C
- Maximum temperature: + 75 degrees C
- MTBF Average Failure interval: > 1862000 h
- RoHS compliance status: Compliance
- Securities Code: 123 -8318
