Features

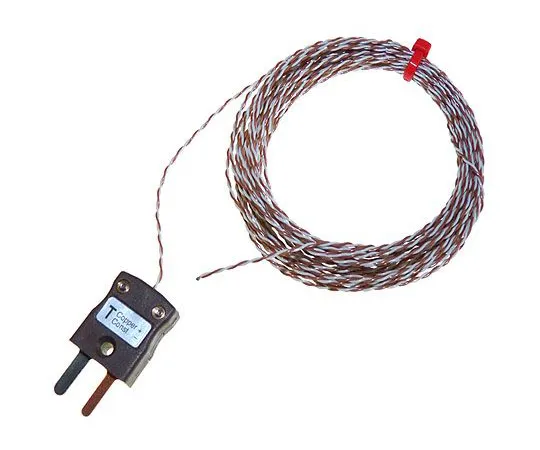

• RS Pro IEC Type T Exposed Contact Fast Response Thermocouple with Miniature Plug
• RS Pro Type T thermocouple temperature sensor complies with IEC-584-3 standard and meets Class 1 tolerance. This thermocouple temperature sensor has a weld tip exposed contact with fast response time. The wires are wired with durable Teflon PFA insulation and terminated with IEC584 color coded miniature flat pin plugs for quick and easy connection.
• Thermocouples are ***d to measure temperature in a variety of processes. Thermocouples are made up of two wire legs of two different metals, joined at both ***s of each metal to form two contacts. Thermal contacts (temperature measurement contacts) are connected to the body to be measured. Cold contacts (reference contacts) are connected to bodies of known temperature. When a temperature measuring contact is placed on a heat source, a voltage difference or potential difference occurs between the contact and the reference contact. This voltage is converted to a temperature measurement using the thermocouple reference table. This process is also known as the Seebeck effect.
• Weld tip exposed contacts
• Weld tip exposed contacts are where the thermocouple wire is welded and where there is no covering. Both ***s of this wire are inserted directly into the process. This means that the thermocouple has a high sensitivity and a short response time. Weld tip exposed contacts are susceptible to corrosion, so it is recomm***ed to measure the temperature of non-corrosive flowing or stationary gas.
• Features and benefits: Weld tip exposed contact tolerance with short response time Excellent accuracy in IEC-584-3 Class 1 Durable Teflon PFA lead insulation for oil, acid, and liquid resistance, mechanical strength, and flexibility Quick and easy connection with miniature flat pin plug Temperature range: -75 → +250 °C Use: Beca*** exposed contact thermocouples are susceptible to corrosion, it is recomm***ed that they be ***d to measure the temperature of non-corrosive flowing or stationary gases. Applications include testing and development, instrumentation, temperature mapping, and OEM applications.
