Features

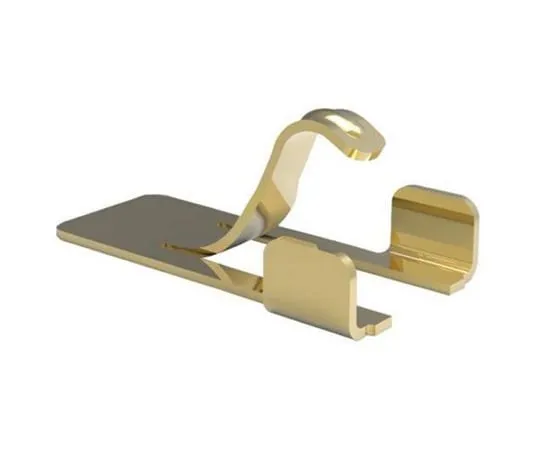

• TE Connectivity Scalable Spring Finger Contact • Spring fingers (Shield finger, ground spring, universal ground contact, or clip) are designed for small substrate applications in a variety of industries.　These spring fingers are single-contact SMT-mounted internal connectors that provide a grounding connection between the device and the substrate and a shield to prevent EMI noise and static electricity.　Scalable spring fingers *** a common footprint, so you can easily design them without using extra space on the board when changing from one operating height to another. These spring fingers prevent them from getting tangled in the operator's gloves or causing deflection during substrate transport.　Contact dimples increase contact force, and solder holes in the substrate increase soldering strength and prevent wicking.　Automatic assembly is achieved in the pick-and-place area on the contact.　These small-sized spring fingers save substrate space and provide a variety of substrate layouts.　These spring finger contacts are available in three different styles: Type A (part number 2199248-X), Type B (part number 2199249-X), and Type C (part number X-2199250-X).
• Features and Benefits: Provides ground connection between device and substrate Prevents EMI noise and static electricity Scalable design for diverse designProtects side walls Increases contact force Increases dimple solder strength Substrate solder holes Compact design to save space Pick-and-Place area for automated assembly Applications: These scalable spring fingers are suitable for a wide range of substrate applications in diverse industries.　Consumer Devices, Digital Cameras, Mobile Phones, Game Consoles, Desktop Computers, Laptops, Tablet Industry and Automobiles, Security Cameras, POS Scanners, Satellite Radio, GPS Devices Medical, Patient Monitoring Equipment, Fitness Equipment, Wearable Devices
