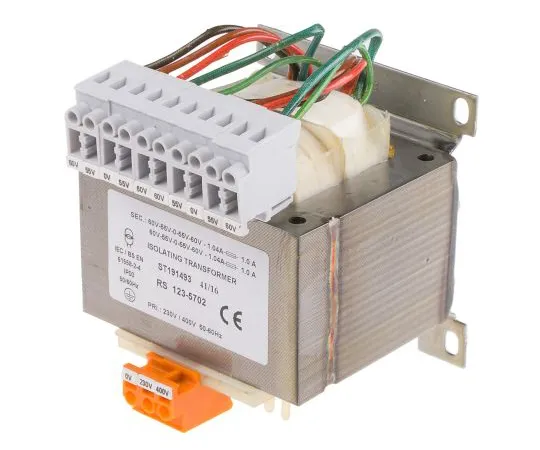

63-6900-10 RS PRO 250VA Isolation Transformer, 0 → 230 → 400V ac Primary, 4 x 0-55-60V ac Secondary 123-5702
Product Description
Product Model: 63-6900-10Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-6900-10
Product Brand: RS PRO
Features
- RS Pro Insulated Transformer (4 x 0-55-60 V) • Delivered by the trusted RS Pro brand, this series of single-phase insulated transformers is designed for general-purpose ***. These transformers are equipped with threaded connectors for multiple inputs and brackets for screw fastening, or DIN rail fasteners for variations up to 250 VA. These high-quality insulated transformers have ground terminals and low-noise laminates. The RS Pro insulated transformer features standard primary windings of 0-230-400 V ac for a low-regulation, high-efficiency design.
- Features
- 100% Electrical performance test/flash tested varnish impregnation Detailed specifications are provided on each product label Temperature Class B
Spec
- Primary Voltage Rating:0 → 230 → 400V ac
- Secondary Voltage Rating:4 x 0-55-60V ac
- Power Rating:250VA
- Mounting Type:DIN Rail Mount, Screw Mount
- Length:96mm
- Width:102mm
- Depth:110mm
- Minimum Operating Frequency:50Hz
- Maximum Operating Frequency:60Hz
- Weight:3.7kg
- CODE No.:123-5702
