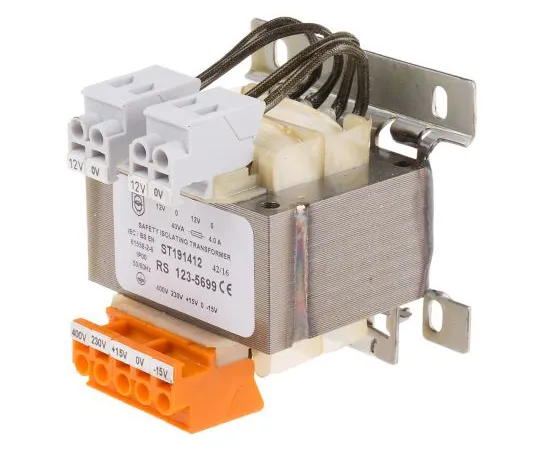

63-6900-08 RS PRO 40VA Isolation Transformer, 15 → 400V ac Primary, 2 x 12V ac Secondary 123-5699
Product Description
Product Model: 63-6900-08Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-6900-08
Product Brand: RS PRO
Features
- RS Pro Panel Insulated Transformer (Single Phase) • The RS Pro high-quality panel insulated transformer is designed for general ***. These single-phase transformers have threaded connectors for multiple inputs and brackets for screw fastening or DIN rails. Standard primary winding 0-230-400 V ac, adjustable +/- 15 V near 0, 100% electrical performance and flash tested.
- Features • High quality safety/insulation transformer Complete separation of primary and secondary windings Section 2 Bobbin Low noise laminate ground terminal included High efficiency varnish impregnation
Spec
- Primary Voltage Rating:15 → 400V ac
- Secondary Voltage Rating:2 x 12V ac
- Power Rating:40VA
- Mounting Type:DIN Rail Mount, Screw Mount
- Length:66mm
- Width:66mm
- Depth:88mm
- Minimum Operating Frequency:50Hz
- Maximum Operating Frequency:60Hz
- Weight:900g
- CODE No.:123-5699
