Features

• EN61350-5-1
• RS Pro ESD Benchtop Kit

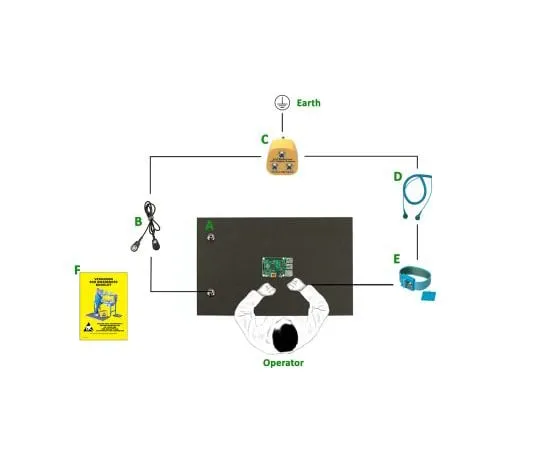

• The ESD benchtop kit on the RS Pro ESD development board provides an effective ESD control workstation.　This development kit creates a temporary ESD protection area (EPA).　An EPA is a workshop where electrostatic discharge sensitive devices (ESDS) can be removed, handled, and packed.　Working in the EPA area minimizes the risk of static damage.　This kit is available in two versions, one for the UK and one for Europe.　This benchtop kit has matte, straight cord, coiled cord, and adjustable wristband.　The ESD Awareness Guide and the UK and European plugs are also included.
• Features and benefits: Benchtop kit for ESD development boardProvides ESD control workstationTemporary ESD protection areaReduces risk of static damageAvailable in two types: UK and European kits include Pro-Mat, black straight cord with socket, blue coiled cord with socket, blue telescoping wristband, ESD awareness guide, British Plug or European Plug
• PRO-MAT:
• Used as a work surface or shelf Chemical resistance Impregnated material 100% durable recycled material 100% recyclable Low charge antistatic dissipative surface 2 x 10 mm Ostud earth snap included Size: 298 mm x 450 mm x 2 mm Suitable for EN61340-5-1
• Coiled and grounding cord
• Grounding cord Used to connect mat and earth bonding point (EPB) plug Cord diameter: 2.5 mm 7 pole duplex gloss finish copper conductor with PVE insulating socket *** 1 MΩ resistor length: 0.7 m 2 x 100 socket Coiled cord: Wristband and earth bonding point (EPB) plug diameter: 2.4 mm gloss finish copper conductor with polyurethane insulating socket *** 10 MΩ resistor length: 2.4 m 2 x 10 mm socket
• Wristband
• Lined with metal or plastic general purpose 130 ~ 180 mm around wrist Stretched and fitted -5 mm stud connector metal ****s contact dry skin If you have problems with metal touching skin, *** a plastic cover Band inside surface: -1 acrylonitrile-copper sulfide dye composition fibers for inner conductor.　Band Outer surface is preester fiber Band resistance: 80 → 90 Ω/inch Polycarbonate plastic plate Polycarbonate latch Stainless steel base Plug: UK part number 123-5614 Case dimensions 51 x 49 x 31 mm EU part number 123-5615 Case dimensions 63 x 49 x 49 mm Color: Yellow Weight: 36 g Resistance between connector and ground pin: 0.8 → 1.2 MΩ Resistance between connector and connector: approx. 2 MΩ
