Analyzer, Testing Equipment

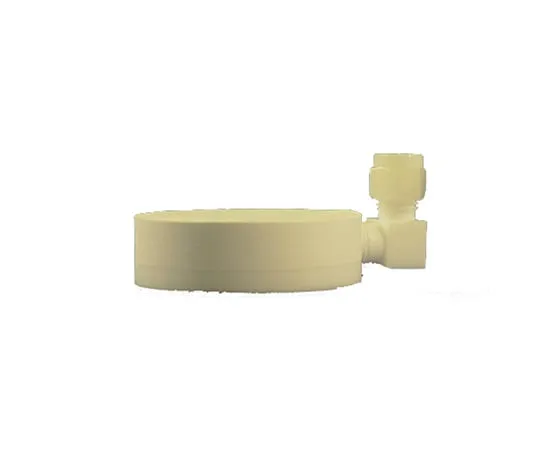

3-2440-01 PTFE Bubbler (Round Shape) Φ50 x 15 50
model:
3-2440-01
category:
Analyzer, Testing Equipment
Product Description
Product Model: 3-2440-01 Features Made of all-fluorine […]
Contact Us
Product Details
Product Model: 3-2440-01
Features
- Made of all-fluorine resin, it has excellent chemical resistance and is resistant to acids, alkalis and solvents.
- Since it does not contain foaming agents or other additives from the time of manufacture, there is no concern of contamination due to elution.
- Bubbles begin to form at a supply air pressure of 0.05~0.2 MPa (usually around 0.0098 MPa).
Spec
- Model number: Round shape 50
- Porous size (mm): φ50 x 15
- Total length x total height (mm): 68 x 28
- Material: Bubbler/PTFE (tetrafluoroethylene), Fitting/(body) PTFE (fluorine resin), (cap nut) ECTFE (fluorine resin)
- Allowable temperature limit: 100℃
- Accessories: PFA tube (φ4mm x φ6mm x 2m) x 1
- RoHS3 (EU)2015/863 Certificates can be issued
