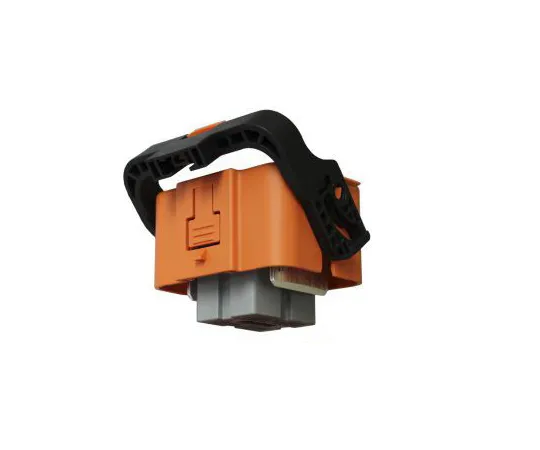

63-6896-52 MSD Connector (for Electric Vehicless) 500 A 690 V ac Male Orange MSDM5002
Product Description
Product Model: 63-6896-52Product Brand: Amphenol Featur […]
Contact Us
Product Details
Product Model: 63-6896-52
Product Brand: Amphenol
Features
- MSD Plug (with HVIL)
- This manual service disconnect (MSD) from Amphenol is ***d for charging plug-in hybrid vehicles (PHEV) and is equipped with a high voltage interlocking loop (HVIL). This plug has a two-step lever to open the HVIL circuit before separating the high-voltage contacts. The MSD allows the internal high-voltage battery pack to be shut off without the need for special tools, while also protecting the battery from short circuits. This MSD provides advanced intrusion protection and provides a safe and secure solution for PHEV services.
- Features and Advantages: Durability over 50 insertions and removals Protection rating for biting: IP67, IP6K9K Operating temperature: -40°C → 70°C Standards: USCAR-2, USCAER-37, LV-215
Spec
- Number of pieces: 1
- Series: MSD
- Connector Type: Manual Service Disconnect
- Current rating: 500 A
- Operating voltage: 690 V ac
- Connector G***er: Male
- Contact G***er: Male
- Operating temperature Max: + 70 degrees C
- RoHS compliance status: Compliance
- Securities Code: 123 -5221
